Carbon Molecular Sieve in Pressure Swing Adsorption Nitrogen Generators
2023-07-29
Pressure Swing Adsorption (PSA) nitrogen generators have become a popular and cost-effective solution for producing high-purity nitrogen gas. One of the critical components in these systems is the carbon molecular sieve (CMS), an adsorbent material used to separate nitrogen gas from other gases in the air. Now below article aims to explore the efficiency and benefits of using carbon molecular sieve in PSA nitrogen generators.
Firstly: Understanding Carbon Molecular Sieve
Carbon molecular sieve is a porous material with a highly ordered structure, composed primarily of carbon atoms. Due to its unique properties, CMS has excellent adsorption selectivity for oxygen and other trace impurities while allowing nitrogen molecules to pass through relatively unhindered. As a result, CMS plays a vital role in generating nitrogen gas with purity levels as high as 99.999%.
Secondly: Working Principle of PSA Nitrogen Generators

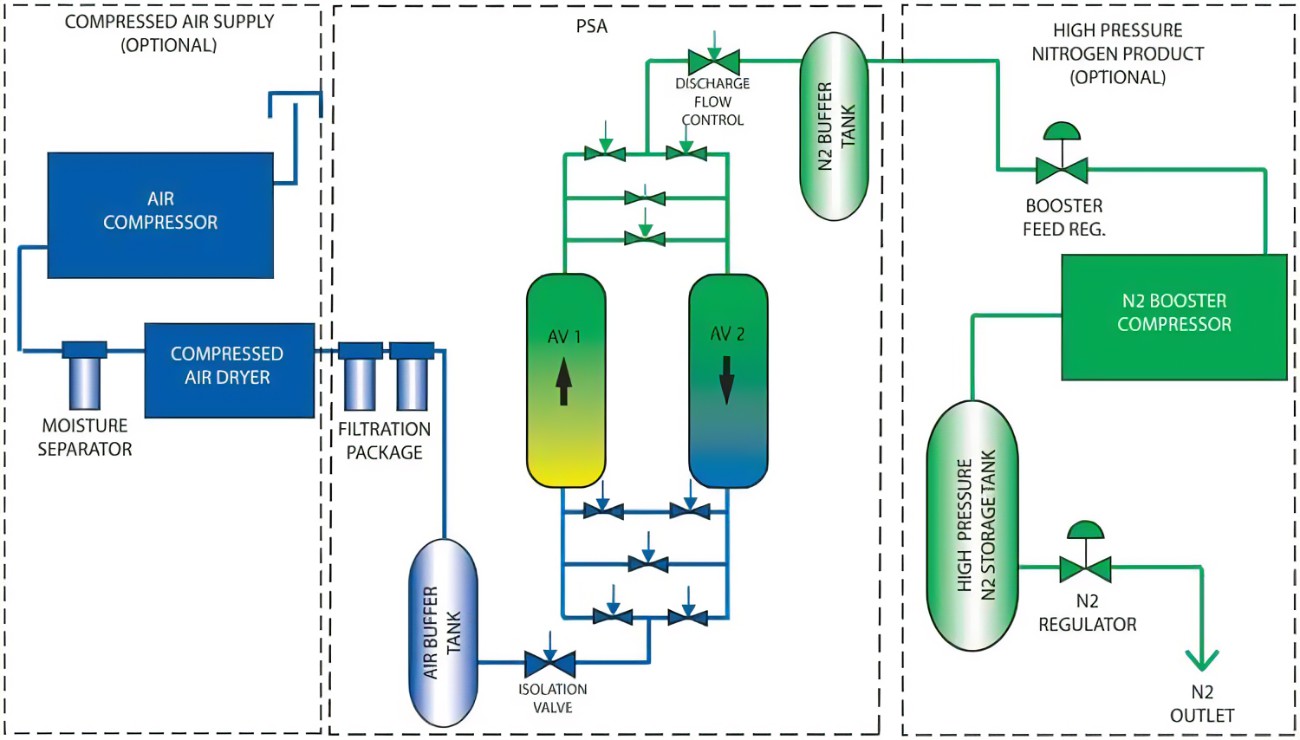

PSA nitrogen generators utilize the principle of selective adsorption to separate nitrogen from the surrounding air. The process involves several steps:
Air Compression: The ambient air is initially compressed to increase the concentration of nitrogen and other gases.
Filtration: The compressed air passes through filters to remove dust, oil, and other contaminants.
Adsorption: The pre-treated air enters the PSA unit containing beds filled with carbon molecular sieve. Oxygen and other impurities are selectively adsorbed by the CMS, allowing pure nitrogen to pass through.
Desorption: As the CMS beds become saturated with impurities, the airflow is redirected, and the backflow of purified nitrogen desorbs the trapped gases from the CMS material.
Purge: To ensure complete removal of adsorbed impurities, a small portion of produced nitrogen is directed back into the CMS bed to purge any remaining gases.
Benefits of Carbon Molecular Sieve in PSA Nitrogen Generators:
High Purity Nitrogen: CMS offers exceptional selectivity for oxygen and other impurities, resulting in nitrogen gas with purity levels suitable for a wide range of applications, including food packaging, electronics manufacturing, and pharmaceutical processes.
Energy Efficiency: Carbon molecular sieve operates at lower regeneration pressures, reducing energy consumption compared to alternative adsorbents. This feature contributes to cost savings and environmental sustainability.
Long Service Life: CMS demonstrates excellent durability and can withstand frequent cycles of adsorption and desorption, ensuring long-lasting performance and extended service life for PSA nitrogen generators.
Fast Cycle Times: The unique pore structure of carbon molecular sieve enables rapid adsorption and desorption kinetics, facilitating shorter cycle times for nitrogen production. This characteristic enhances the overall efficiency and productivity of the PSA system.
Carbon molecular sieve is a highly efficient and reliable adsorbent material used in PSA nitrogen generators. Its ability to selectively adsorb oxygen and impurities while allowing pure nitrogen to pass through makes it an ideal choice for various industries requiring high-purity nitrogen gas. The benefits of carbon molecular sieve, including its energy efficiency, long service life, and fast cycle times, make it an indispensable component in the production of nitrogen gas through pressure swing adsorption technology.
Jiangxi OIM Chemical Co., Ltd is professional supplier in molecular sieve production, and the types of our carbon molecular sieve divide into CMS220, CMS240, CMS260, CMS280...... CMS330. To know more details, just email us via info@oimchem.com.
