The working principle of pall ring in desulfurizer tower


Desulfurization is the process of removing sulfur compounds, such as hydrogen sulfide (H2S), from gases emitted by certain industries. It's important to reduce the release of these harmful compounds into the atmosphere to protect the environment and human health.
When it comes to desulfurization towers, Pall rings play a crucial role. Pall rings are named after their shape, which resembles a series of cylindrical tubes with several internal and external surface features. These rings are made of various materials, such as ceramic or metal, that have high resistance to temperature and chemical corrosion.
Now, let's get into their working principle. When the gas containing sulfur compounds enters the desulfurizer tower, it comes into contact with the Pall rings. The rings provide a large surface area for the gas to interact with another substance, known as the desulfurizing agent.
The desulfurizing agent can vary depending on the specific requirements of the process, but commonly used ones include liquid solvents like amines or sodium hydroxide solutions. The purpose of the desulfurizing agent is to chemically react with the sulfur compounds in the gas and convert them into less harmful substances or separate them for further treatment.
The Pall rings enhance the gas-liquid contact within the tower. The unique shape of the rings allows for optimum flow distribution and minimizes liquid holdup, ensuring efficient mass transfer between the gas and the desulfurizing agent. This contact promotes the absorption or reaction of the sulfur compounds, effectively removing them from the gas stream.

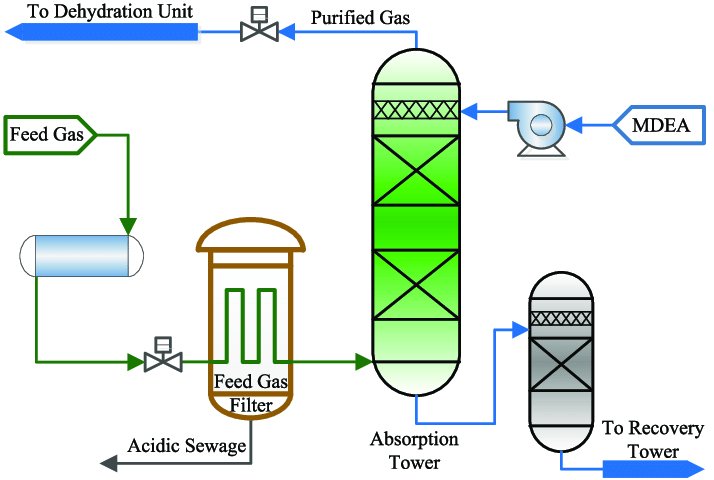

During the process, the gas flows upward through the tower while the desulfurizing agent, often in liquid form, trickles down over the Pall rings. This counter-current flow arrangement maximizes the contact between the two phases, facilitating the desired chemical reactions.
By the time the gas reaches the top of the desulfurizer tower, it has undergone the necessary chemical transformations, resulting in a significant reduction of sulfur compounds. The purified gas is then released into the environment with minimal sulfur content, complying with environmental regulations and standards.
In summary, Pall rings enable efficient gas-liquid contact within desulfurizer towers, facilitating the absorption or reaction of sulfur compounds with the desulfurizing agent. They enhance the overall performance of the desulfurization process, contributing to cleaner and safer emissions.
