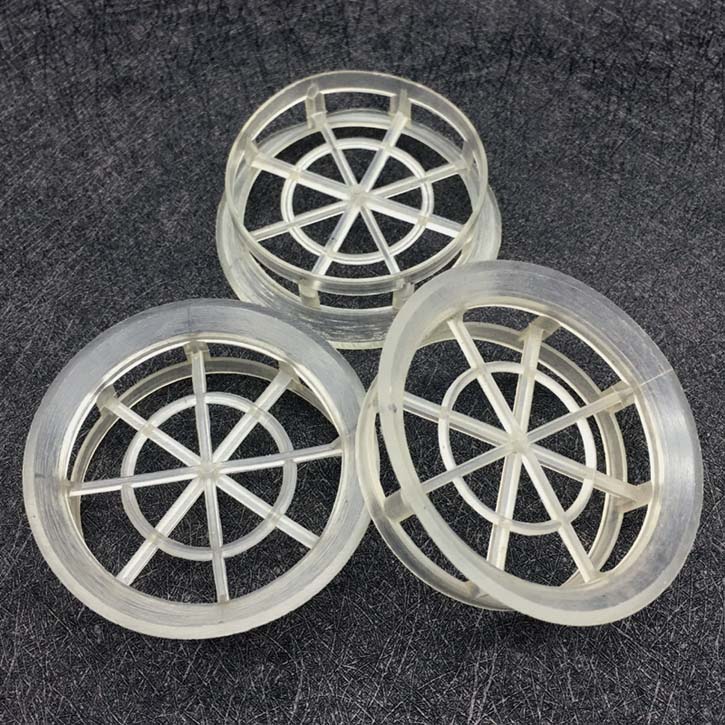

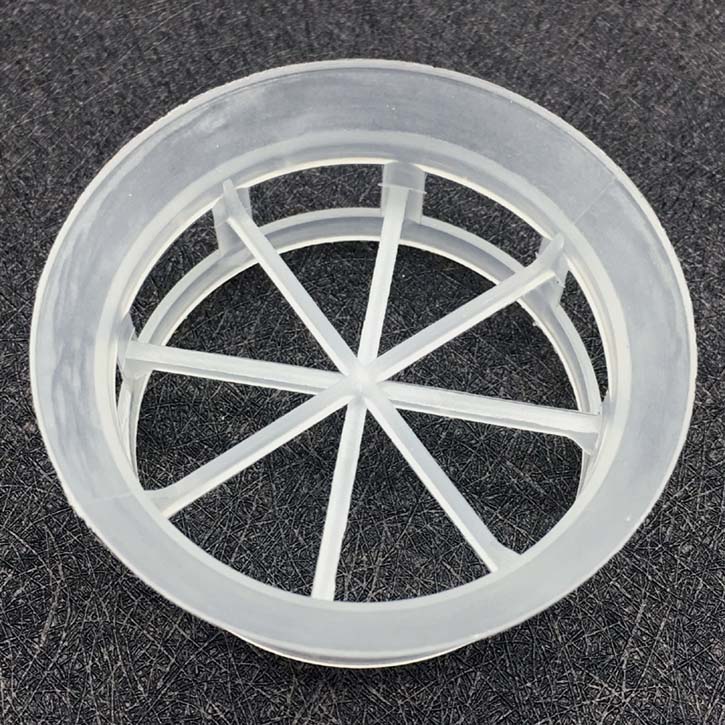

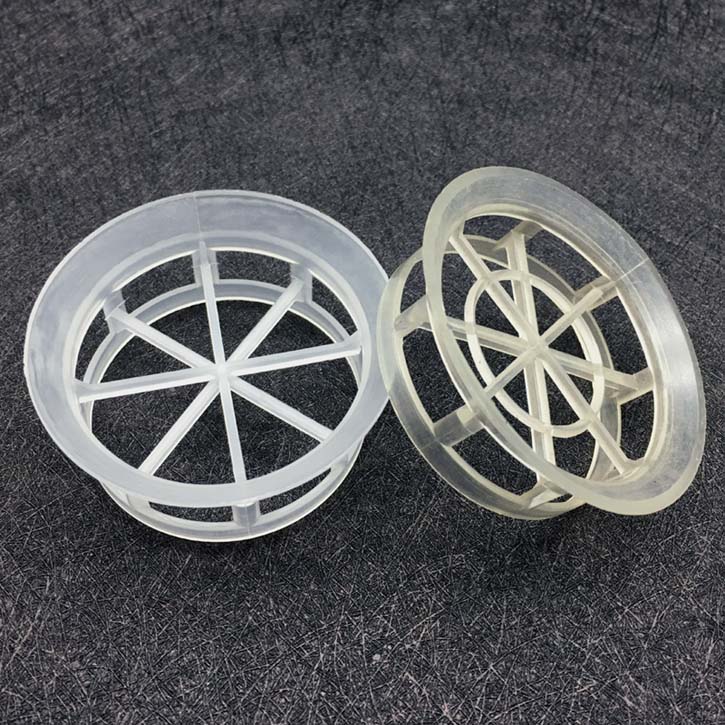

Description:
Plastic Cascade Min ring which has reduced pressure, large flux,high efficiency, large load flexibility , and good pollution resistance. This not only increases the porosity and reduces the pressure drop,but also constitutes the convergence or dispersion point of the liquid flowing along the surface of the filler, promotes the renewal of the liquid film surface and the liquid mixing, makes the gas-liquid distribution uniform, and increases the gas-liquid contact surface It improves the mass transfer efficiency.
Technical Parameter:
|
Specification of Plastic Cascade Mini Ring |
|
Material:PP,RPP,PE,PVC,CPVC,PVDF,etc. |
Dia
(mm) |
D*T
(mm) |
Surface Area
(m2/m3) |
Free Volume
(%) |
Bulk number (pcs/m3) |
Bulk Density
(kg/m3) |
F Factor
(m-1) |
|
16 |
16*8.9*1.1 |
370 |
85 |
299000 |
135 |
602.6 |
|
25 |
25*12.5*1.4 |
228 |
90 |
81500 |
65 |
312.8 |
|
38 |
38*19*1 |
132.5 |
91 |
27200 |
43 |
175.8 |
|
50 |
50*25*1.5 |
114.2 |
92.7 |
10740 |
40 |
143.1 |
|
76 |
76*37*3 |
90 |
92.9 |
3420 |
42 |
112.3 |
Application：
Used for various separations in decarbonization and desulfurization systems of synthetic ammonia plants, crude oil separation atmospheric and vacuum equipment, such as methanol separation, organic acid separation and other absorption and desorption towers.
Package：
Super sack & Wooden case.
Tracy Chen
