Plastic Tower Packing

Plastic Tellerate Rosette Ring

  • Brand: OIM
  • Origin of city: Pingxiang city, China
  • Shelf time: 3-5 years
  • Payment of terms: TT, L/C, Western Union etc
  • Delivery of terms: By sea, by air, railways, land etc
  • Shipment terms: FCA, FOB, CFR, DAP etc
  • Delivery time: 3-7 days for common product;
  •                        Over 10 days for customized product.

  • Inquiry Now

Description:

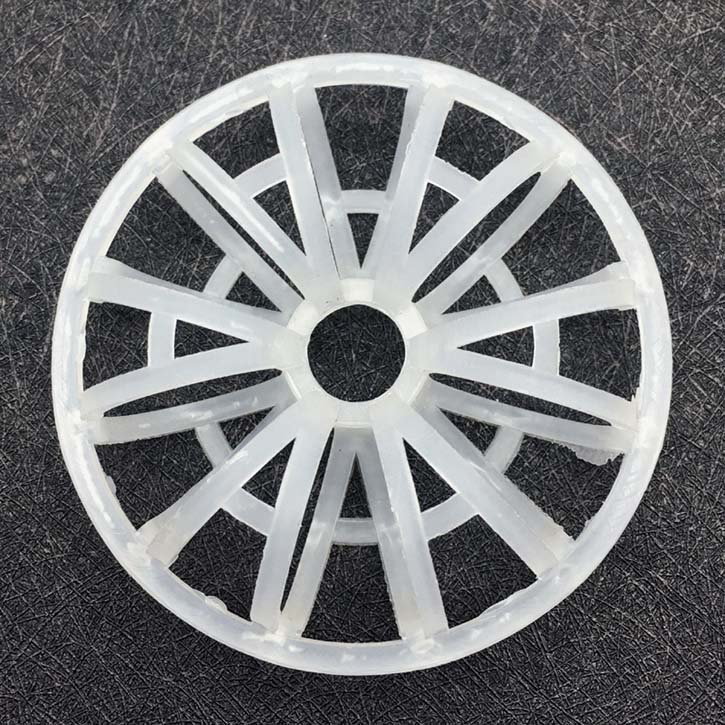

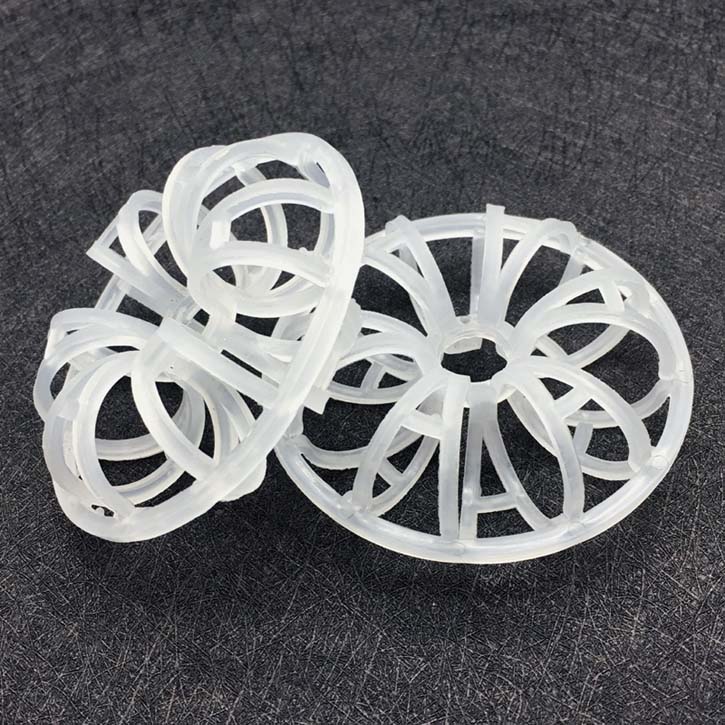

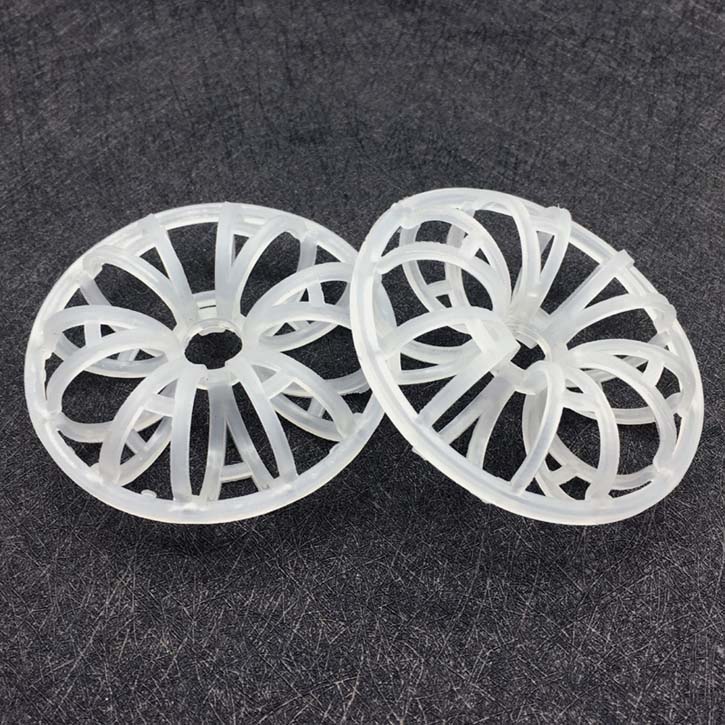

Plastic Tellerate Rosette Ring, is composed of several small rings in radial arrangement and a big ball. As the gap filler can be at a higher liquid holdup, the tower can remain liquid longerthus increase the gas-liquid contact time, improve the efficiency of mass transfer packing. Which has light weight, low pressure drop, low mass transfer unit height and low cost. It's applicable working temperature ranges from 60℃ to 150℃. Plastic teller rosette ring is available in different materials, shapes and sizes. It is fit for gas absorption, water treatment and purification. This type tower packing is commonly used in purification towers, cooling towers, washing towers and rectifying columns.

Technical Parameter:
Specification of Plastic Tellerate Rosette Ring
Material:PP,RPP,PE,PVC,CPVC,PVDF,etc.
Type

D*H
(mm)
Surface Area
(m2/m3)
Free Volume
(%)
Bulk number (pcs/m3) Bulk Density
(kg/m3)
F Factor
(m-1)
5-ring 25*9 195 82 170000 95 488
9-ring 47*19 185 88 32500 71 271
9-ring 51*19 180 89 25000 60 255
12-ring 59*19 150 92 17500 64 213
12-ring 73*28 127 89 8000 46 180
18-ring 95*37 94 90 3900 46 129
20-ring 145*48 65 95 1100 46 76

Application
Purification towers, cooling towers, washing towers and rectifying columns.  Packed towers of petroleum industries, chemistry industries, coal gas industries and environmental protection industries.

Package:
Super sack & Wooden case.
