Plastic Tower Packing

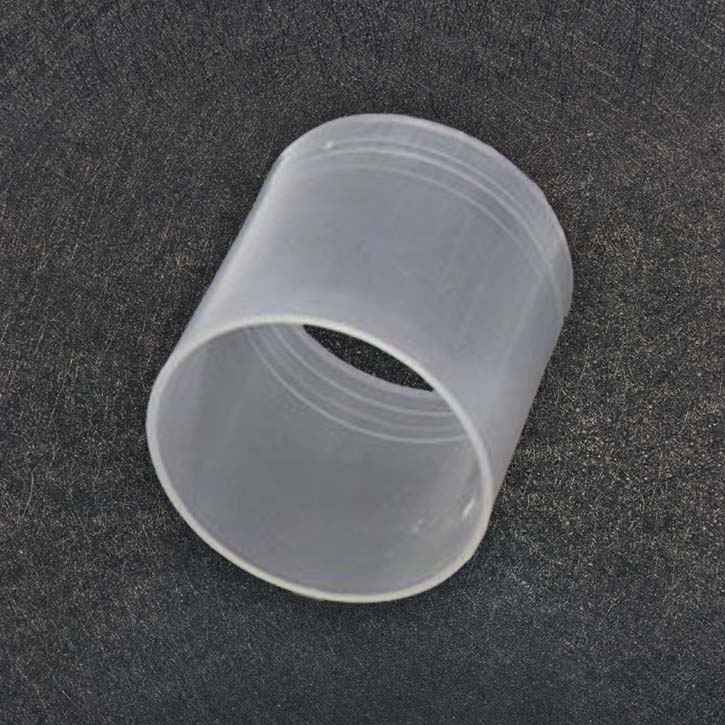

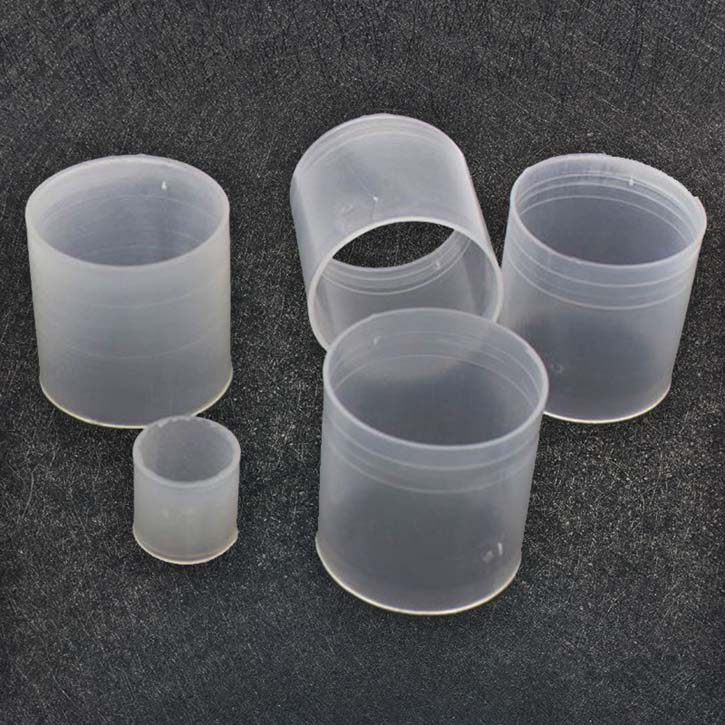

Plastic Raschig Ring

Product：Plastic Raschig Ring
Brand: OIM
Origin of city: Pingxiang city, China
Shelf time: 3-5 years
Payment of terms: TT, L/C, Western Union etc
Delivery of terms: By sea, by air, railways, land etc
Shipment terms: FCA, FOB, CFR, DAP etc
Delivery time: 3-7 days for common product;

Over 10 days for customized product.

Inquiry Now

Description:
The outer diameter and height of the packing ring are equal, the structure is simple and cheap, but there are strong points
such as uneven liquid distribution and serious blue ditch phenomenon.

Technical Parameter:

Specification of Plastic Raschig Ring
Material:PP,RPP,PE,PVC,CPVC,PVDF,etc.
Dia (mm)	DHT (mm)	Surface Area (m²/m³)	Free Volume (%)	Bulk number (pcs/m³⁾	Bulk Density (kg/m³)
15	15150.3	360	94	240000	385
25	25250.3	215	96	51000	231
38	38380.4	135	94.6	14500	207
50	50500.5	105	95.9	6300	200
76	80800.8	80	96.6	1600	200

Application：
drying towers, absorption towers, washing towers, regeneration towers, etc. in the chemical, metallurgical, and gas oxygen production industries.

Package：
Super sack & Wooden case.
