Description:

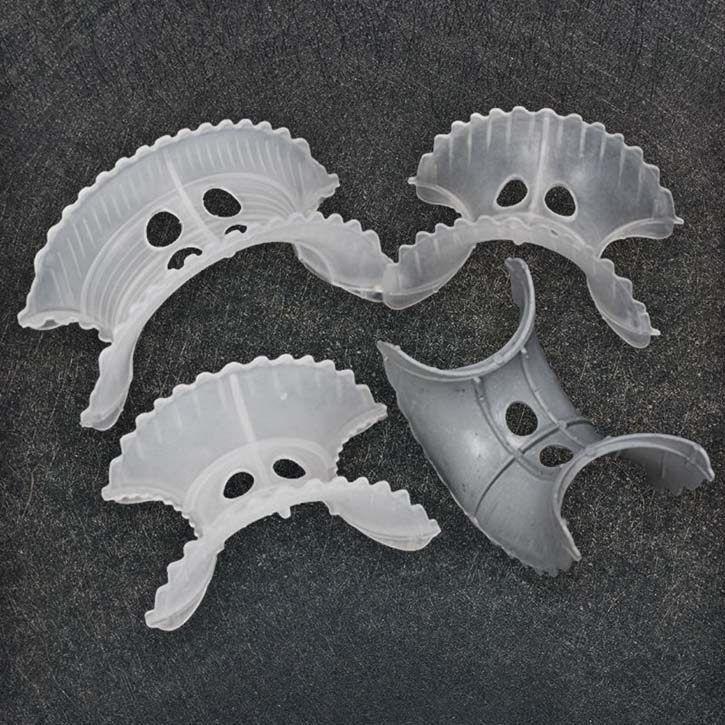

Plastic Super Saddles has large porosity, low pressure drop and mass transfer unit height, high flooding point, sufficient vapor-liquid contact, small specific gravity, high mass transfer efficiency, pressure drop, large flux, high efficiency, large load elasticity, and good pollution resistance Features. Widely used in plastic saddle ring, used in dewaxing oil refining extraction, demethanization, phthalic anhydride refining, etc
Technical Parameter:
|
Specification of Plastic Super Saddles |
|
Material:PP,RPP,PE,PVC,CPVC,PVDF,etc. |
Dia
(mm) |
D*T
(mm) |
Surface Area
(m2/m3) |
Free Volume
(%) |
Bulk number (pcs/m3) |
Bulk Density
(kg/m3) |
F Factor
(m-1) |
|
25 |
25*12.5*1.2 |
288 |
84.7 |
97680 |
156 |
473 |
|
38 |
38*19*1.2 |
265 |
95 |
25200 |
98 |
405 |
|
50 |
50*25*1.5 |
250 |
96 |
9400 |
98 |
332 |
|
76 |
76*38*2.6 |
200 |
97 |
3700 |
62 |
289 |
Application：
drying towers, absorption towers, washing towers, regeneration towers, etc. in the chemical, metallurgical, and gas oxygen production industries.
Package：
Super sack & Wooden case.
