Description:

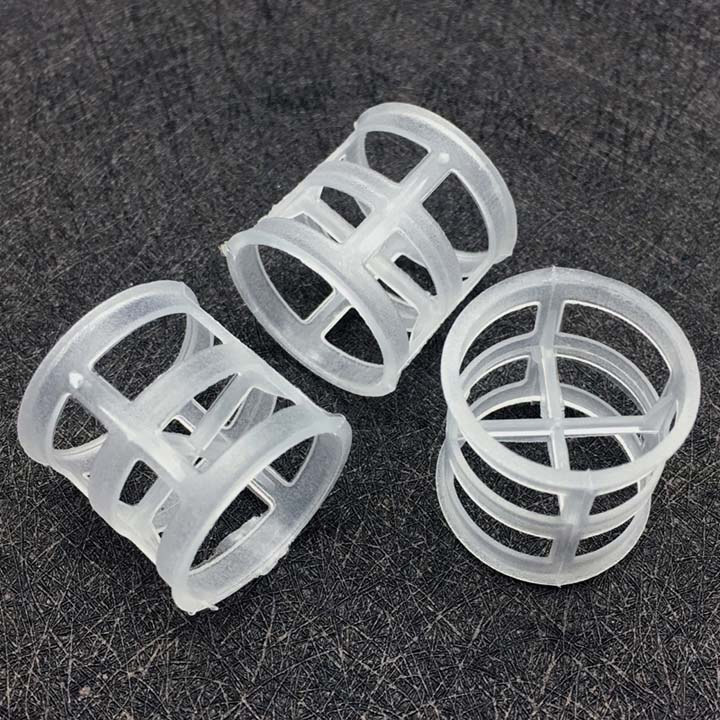

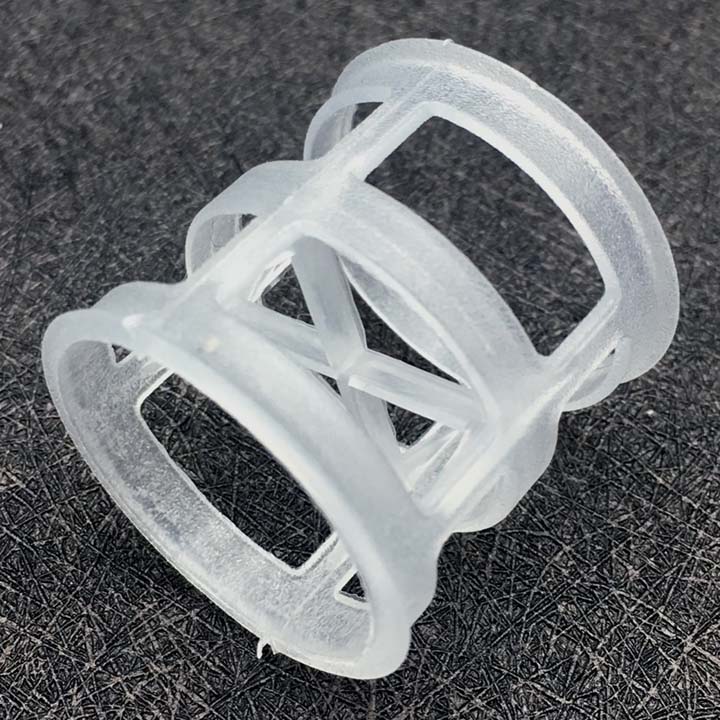

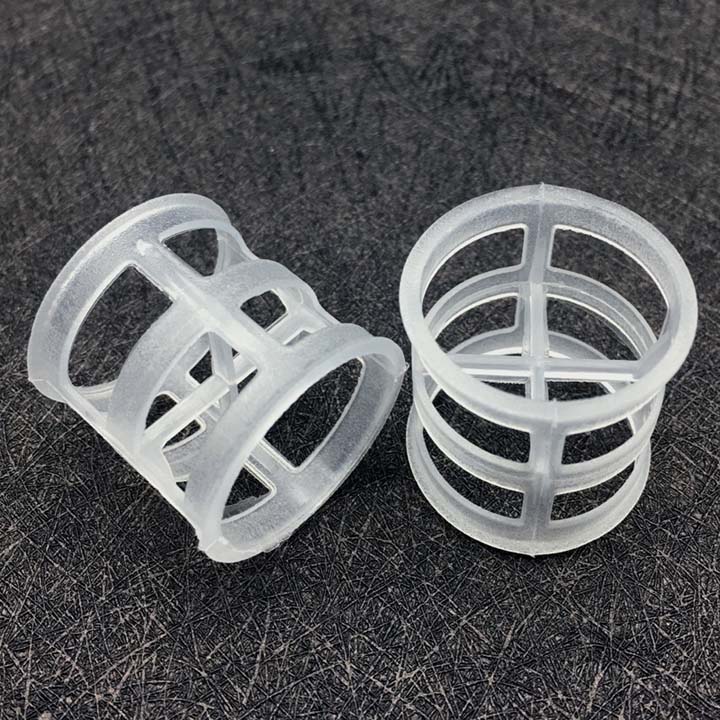

Ralu Ring was developed on the basis of the Pall ring,which increases the flow and reduces the pressure drop. Ralu ring is injection molded from high temperature and corrosion resistant materials.Ralu Ring has the advantages of large void ratio, reduced pressure, low mass transfer unit height, high flood point, sufficient gas-liquid contact, small specific gravity and high mass transfer efficiency.
Technical Parameter:
Specification of Plastic Ralu Ring |
Material:PP,PVDF,etc. |
Dia
(mm) |
Surface Area
(m2/m3) |
Free Volume
(%) |
Bulk number
(pcs/m3) |
Bulk Density
(kg/m3) |
25 |
190 |
94 |
53500 |
56 |
38 |
150 |
95 |
13500 |
65 |
50 |
110 |
95 |
6300 |
60 |
Application:
Used in separation, absorption and desorption device, atmospheric and vacuum distillation device, decarburization and desulfurization system, ethylbenzene, isooctane and toluene separation.
Package:
Super sack & Wooden case.
