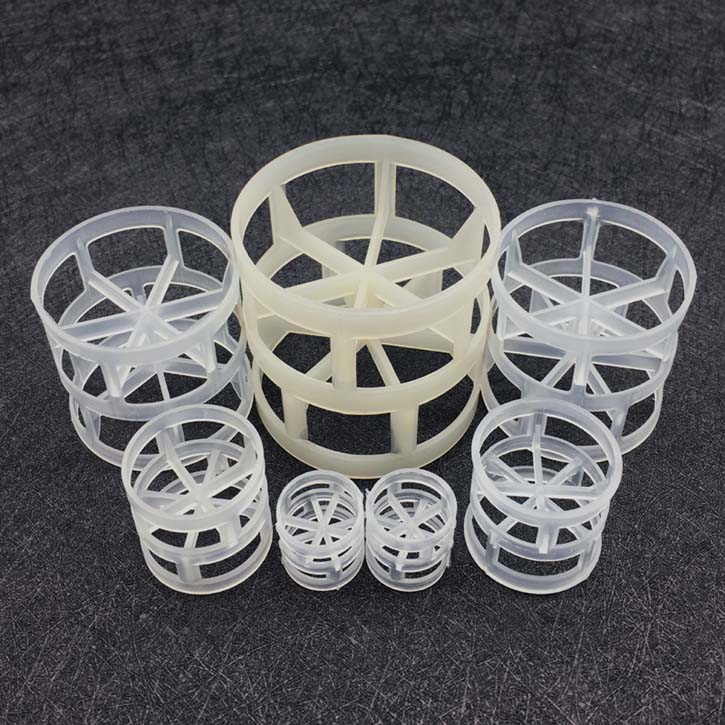

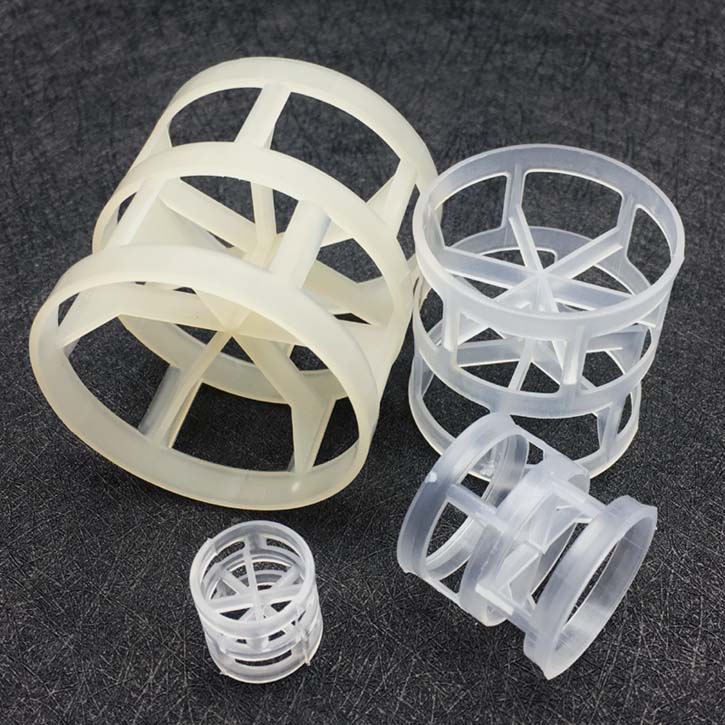

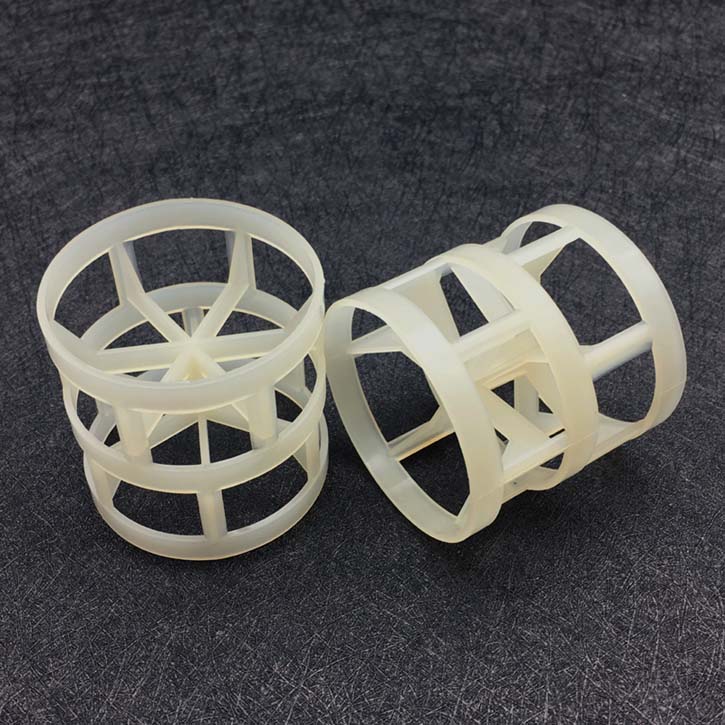

Description:
It has the advantages of large flux, low resistance, high separation efficiency and large operating flexibility. Under the same pressure drop, the processing capacity can be more than 50% larger than that of the Raschig ring.
At the same throughput, the pressure drop can be reduced by half, and the mass transfer efficiency can be increased by about 20%. Compared with the Raschig ring, this packing has the characteristics of large production capacity, low resistance, and greater operating flexibility. Under normal circumstances, the pressure drop can be 50% larger than the Raschig ring under the same pressure drop-and the pressure drop is higher than the Raschig ring under the same treatment. 50%-70% smaller, the tower height can also be reduced
Technical Parameter:
|
Specification of Plastic Pall Ring |
|
Material:PP,RPP,PE,PVC,CPVC,PVDF,etc. |
Dia
(mm) |
D*T
(mm) |
Surface Area
(m2/m3) |
Free Volume
(%) |
Bulk number (pcs/m3) |
Bulk Density
(kg/m3) |
F Factor
(m-1) |
|
16 |
16*1.1 |
274 |
91 |
180000 |
90 |
249 |
|
25 |
25*1.2 |
175 |
90 |
53500 |
49 |
239 |
|
38 |
38*1.4 |
115 |
89 |
15800 |
42 |
220 |
|
50 |
50*1.5 |
112 |
90 |
6500 |
42 |
154 |
|
76 |
76*2.6 |
73 |
92 |
1930 |
34.7 |
94 |
Application：
drying towers, absorption towers, washing towers, regeneration towers, etc. in the chemical, metallurgical, and gas oxygen production industries.
Package：
Super sack & Wooden case.
