Perforated Plate Corrugated Packing

Description:

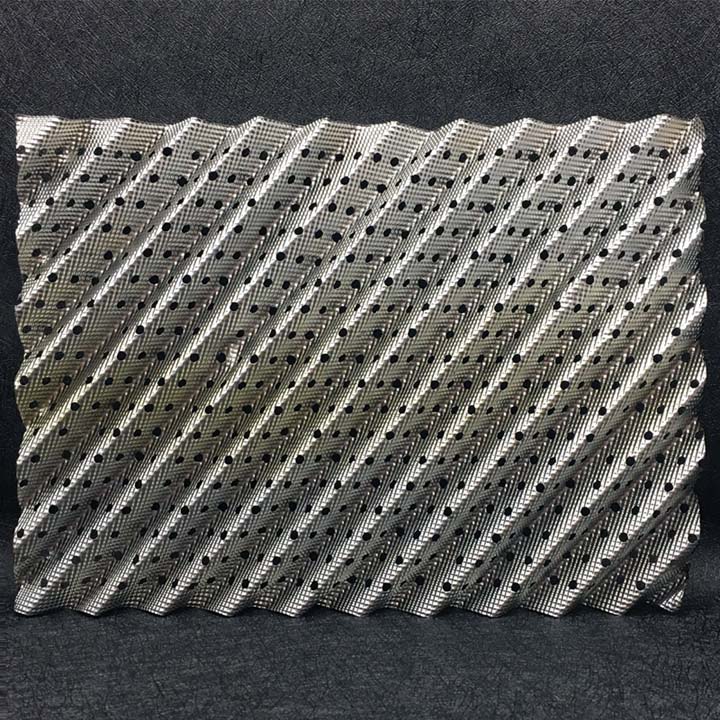

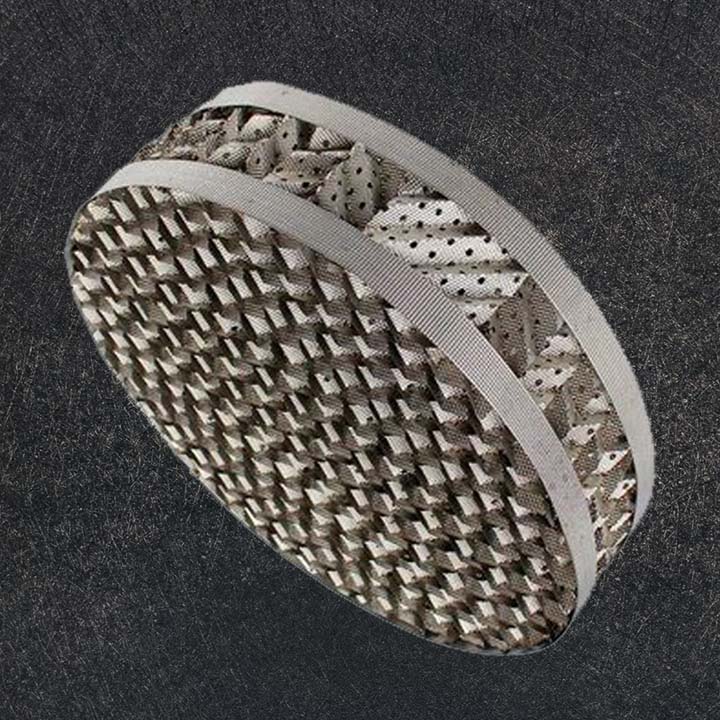

The perforated plate corrugated packing is assembled on the surface of the metal sheet after perforating, rolling small grains, and large corrugations. It has the characteristics of small resistance, uniform gas-liquid distribution, high efficiency, large flux, and insignificant amplification effect. It is used in negative pressure.Normal pressure and pressurized operation.The height of each disc unit is metal perforated plate corrugated packing,with a diameter of more than 1.5m, and the packing is made into blocks. It has the advantages of large flux, low resistance, high efficiency and strong anti-blocking ability

Technical Parameter:

Specification of Perforated Plate Corrugated Packing
Material:SS304, 304L, 410, 316, 316Letc.
Model	Bulk Density (kg/m3)	Specific Surface (m2/m3)	Free Volume (%)	Obl. (Angle)	P (Pa/plate)	Theo.Plate (piece/m)
125Y	100	125	98	45°	200	1~1.2
250Y	200	250	97	45°	300	2~2.5
350Y	280	350	94	45°	350	3.5~4
500Y	360	500	92	45°	400	4~4.5
125X	100	125	98	30°	140	0.8~0.9
250X	200	250	97	30°	180	1.6~2
350X	280	350	94	30°	230	2.3~2.8
500X	360	500	92	30°	280	2.8~3.2


Application：
Absorption,scrubbing and stripping tower in chemical, fertilizer, oil refining, petrochemical, natural gas and other industries etc.

Package：
Wooden case.
