Metal Tower Packing

Metal Raschig Ring

  • Brand: OIM
  • Origin of city: Pingxiang city, China
  • Shelf time: 3-5 years
  • Payment of terms: TT, L/C, Western Union etc
  • Delivery of terms: By sea, by air, railways, land etc
  • Shipment terms: FCA, FOB, CFR, DAP etc
  • Delivery time: 3-7 days for common product;
  •                        Over 10 days for customized product.

  • Inquiry Now

Description:

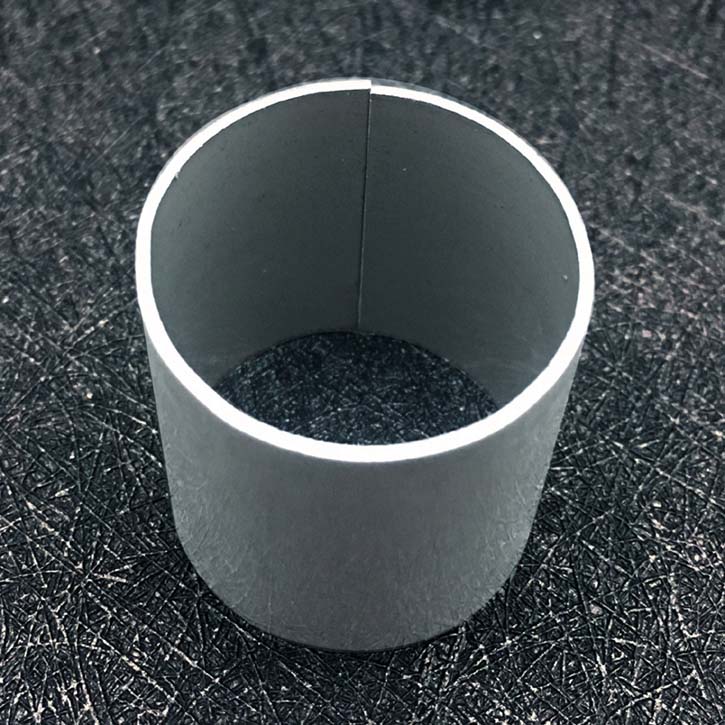

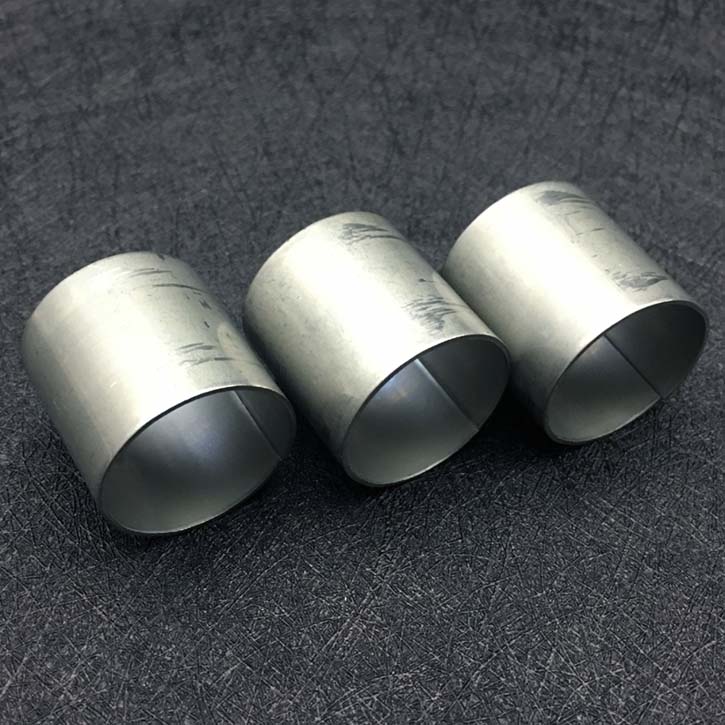

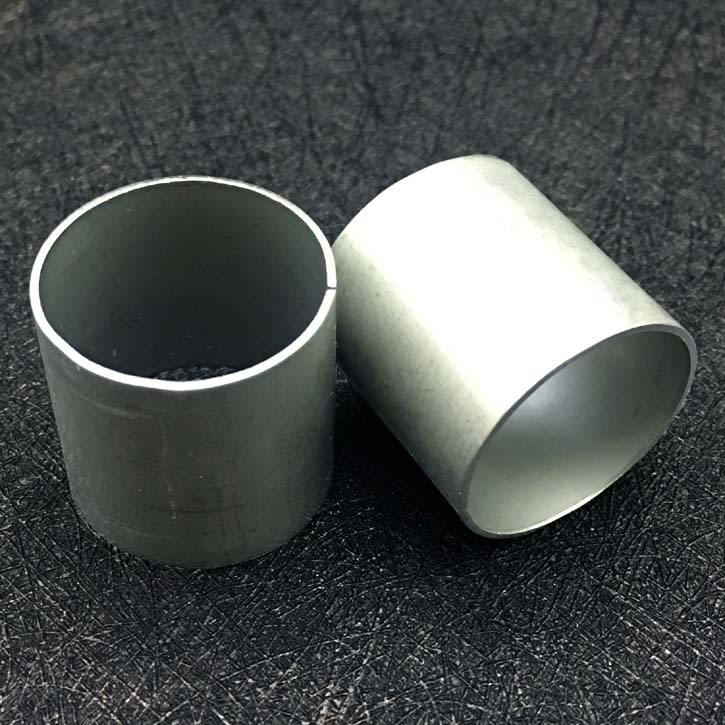

The earliest random packing developed for metal Raschig ring. Its shape is simple, and its height is equal to its diameter.It has excellent acid resistance, can resist various acid corrosion other than acid hydrofluoric acid (HF), and is resistant to high temperature and aging. Made of sheet metal, the height is equal to the diameter, the commonly used size is 25mm~75mm (some as small as 6mm, as large as 150mm).

Technical Parameter:
Specification of Metal Raschig Ring
Material:SS304, 304L, 410, 316, 316L,Carbon Steel etc.
Dia (mm) D*H*T
(mm)
Surface Area
(m2/m3)
Free Volume
(%)
Bulk number (pcs/m3) Bulk Density
(kg/m3)
Packing Factor
(m-1)
16 16*16*0.3 345 95.1 201000 345 393.2
25 25*25*0.5 357 94.6 51000 357 237.2
38 38*38*0.8 387 94.6 15000 387 159.8
50 50*50*0.8 292 95.9 6500 292 120.9
76 76*76*1.0 237 96.6 1830 237 79.6
89 89*89*1.0 206 97 1160 206 66.2

Application
Used in refineries, petrochemical industries, combustion plants and chemical industries.

Package:
Super sack and Wooden case.
