Metal Tower Packing

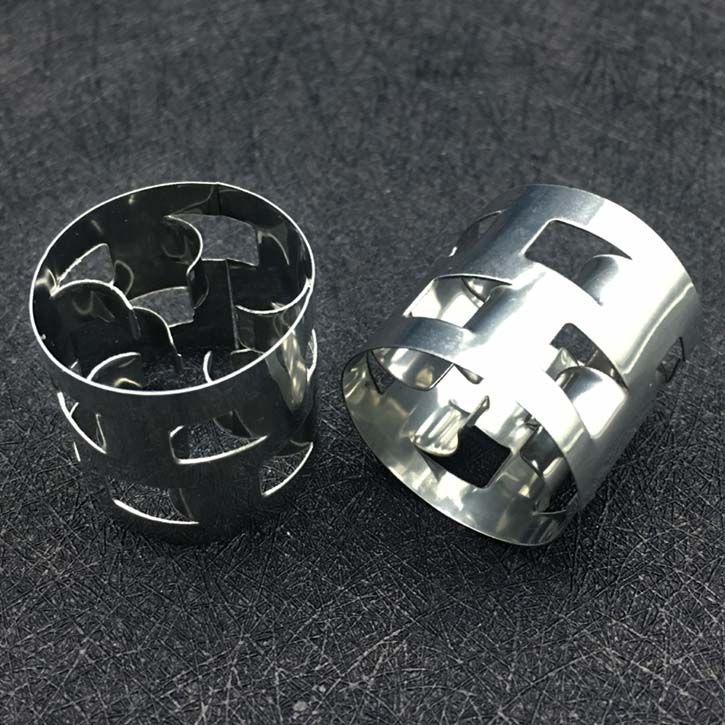

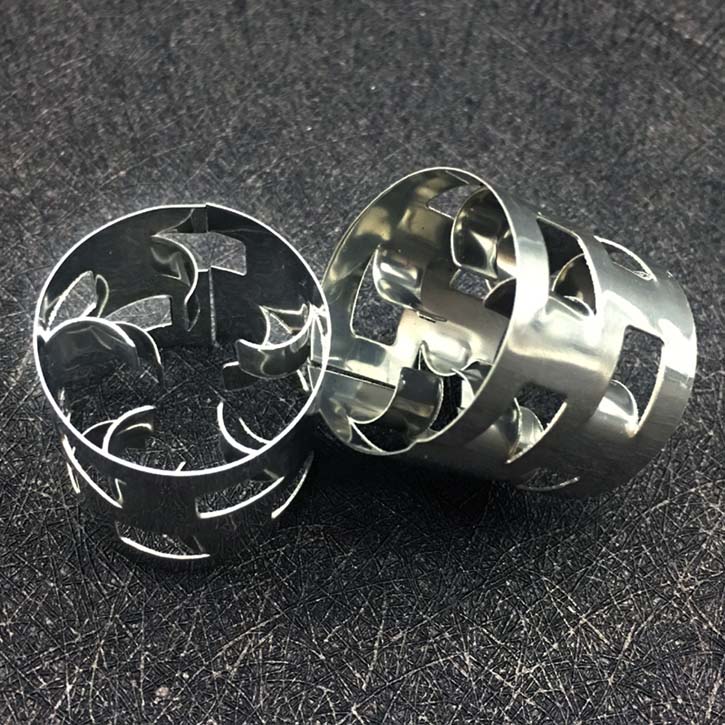

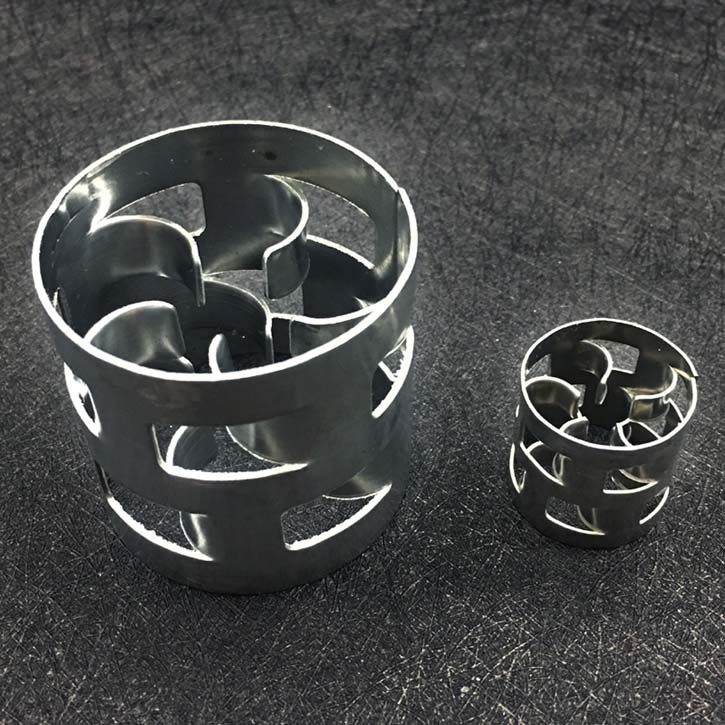

Metal Pall Ring

  • Brand: OIM
  • Origin of city: Pingxiang city, China
  • Shelf time: 3-5 years
  • Payment of terms: TT, L/C, Western Union etc
  • Delivery of terms: By sea, by air, railways, land etc
  • Shipment terms: FCA, FOB, CFR, DAP etc
  • Delivery time: 3-7 days for common product;
  •                        Over 10 days for customized product.

  • Inquiry Now

Description:

Metal Pall ring packing has the advantages of large flux, low resistance, high separation efficiency and large operating flexibility. Under the same pressure drop, the processing capacity can be more than 50% larger than that of the Raschig ring. It has the characteristics of large production capacity, strong resistance, and large operating flexibility.

Technical Parameter:
Specification of Metal Pall Ring
Material:SS304, 304L, 410, 316, 316L,Carbon Steel etc.
Dia (mm) D*H*T
(mm)
Surface Area
(m2/m3)
Free Volume
(%)
Bulk number (pcs/m3) Bulk Density
(kg/m3)
Packing Factor
(m-1)
16 16*16*0.3 346 95.5 201000 345 393.2
25 25*25*0.3 212 96.2 51000 214 222
38 38*38*0.4 145 96.7 15000 193 148.4
50 50*50*0.5 106 97.5 6500 182 128.5
76 76*76*0.6 69 97.4 1830 142 74
89 89*89*0.7 62 97.1 1160 145 64

Application
Used in refineries, petrochemical industries, combustion plants and chemical industries.

Package:
Super sack and Wooden case.
