Metal Tower Packing

Metal IMTP Ring

  • Brand: OIM
  • Origin of city: Pingxiang city, China
  • Shelf time: 3-5 years
  • Payment of terms: TT, L/C, Western Union etc
  • Delivery of terms: By sea, by air, railways, land etc
  • Shipment terms: FCA, FOB, CFR, DAP etc
  • Delivery time: 3-7 days for common product;
  •                        Over 10 days for customized product.

  • Inquiry Now

Description:

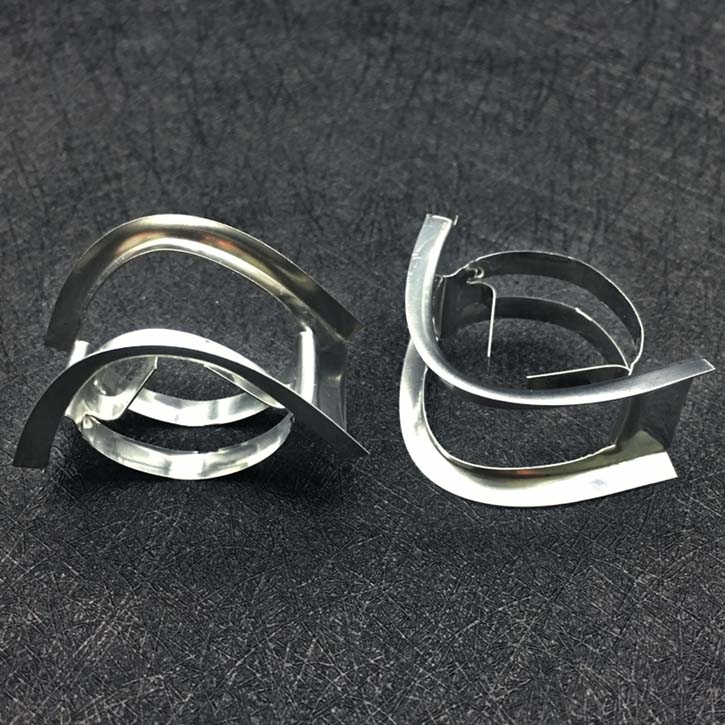

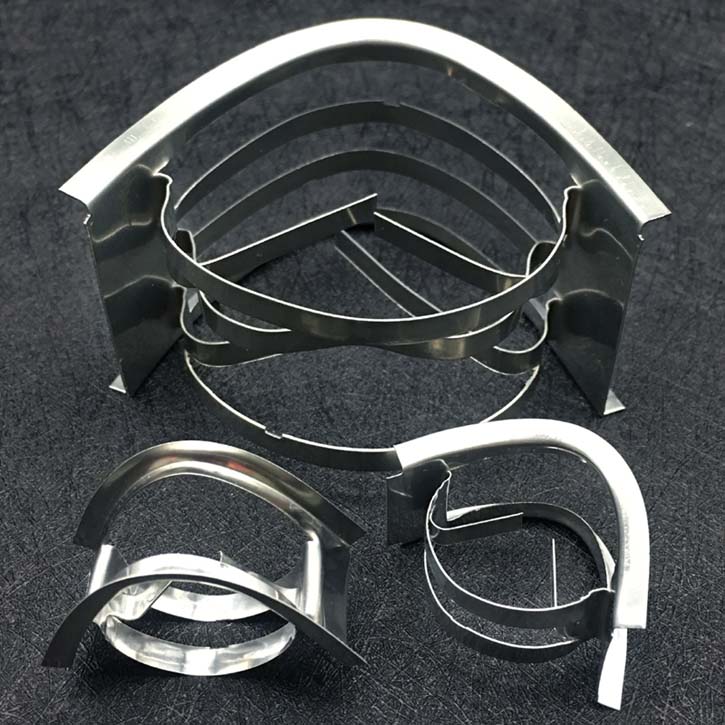

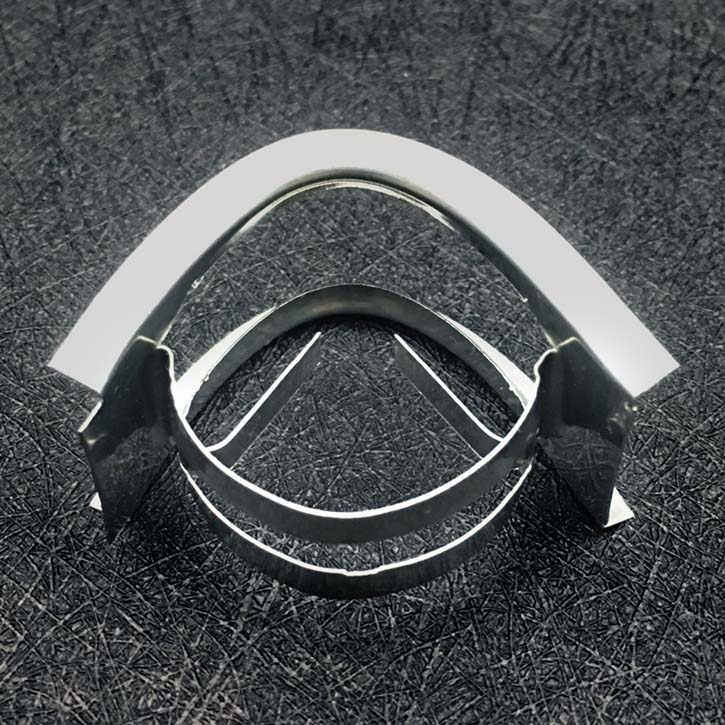

Metal Intalox saddle ring has low pressure drop, large flux, high mass transfer efficiency and easy operation. Metal intalox saddle ring packing is a kind of universal packing, which can be widely used in rectification, absorption and other reactions.
It can be used in both vacuum towers and high-pressure towers. It can also be applied to mass transfer towers with different diameters.

Technical Parameter:
Specification of Metal IMTP Ring
Material:SS304, 304L, 410, 316, 316L,Carbon Steel etc.
Dia (mm) D*H*T
(mm)
Surface Area
(m2/m3)
Free Volume
(%)
Bulk number (pcs/m3) Bulk Density
(kg/m3)
Packing Factor
(m-1)
15 15*10*0.3 305 96.5 347000 282 167
25 25*12*0.3 241 96.8 135000 222 135
40 40*18*0.3 161 97.1 50200 147 79
50 50*29*0.4 104 98.1 15000 133 59
60 60*60*0.4 85 98.2 8400 109 50
70 70*35*0.5 62 98.6 4600 114 39

Application
Used in rectification, absorption and other reactions. It can be used in both vacuum towers and high-pressure towers. It can also be applied to mass transfer towers with different diameters.

Package:
Super sack and Wooden case.
