Wire Gauze Structured Packing

  • Product:Wire Gauze Structured Packing
  • Brand: OIM
  • Origin of city: Pingxiang city, China
  • Shelf time: 3-5 years
  • Payment of terms: TT, L/C, Western Union etc
  • Delivery of terms: By sea, by air, railways, land etc
  • Shipment terms: FCA, FOB, CFR, DAP etc
  • Delivery time: 3-7 days for common product;
  •                        Over 10 days for customized product.

  • Inquiry Now

Description:

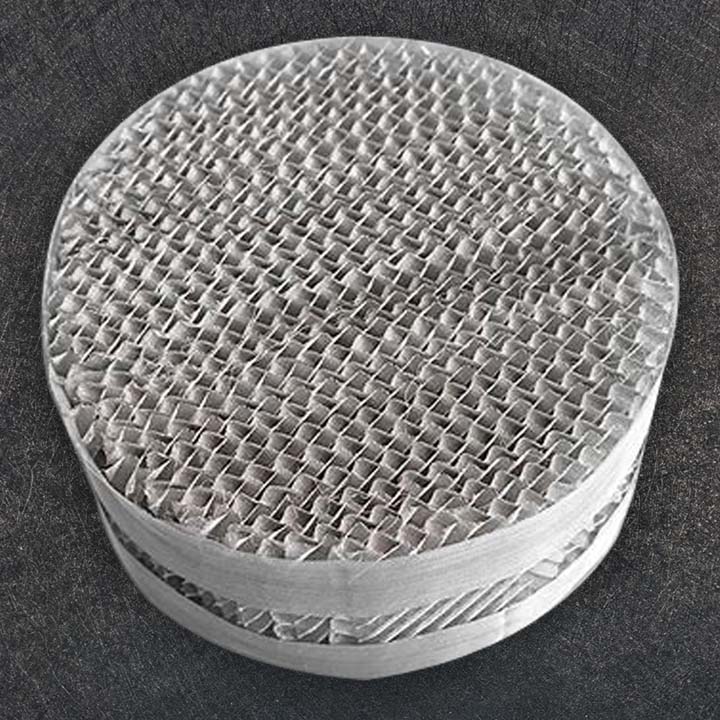

Wire Gauze Structured Packing is formed by arranging corrugated wire mesh sheets, the inclination angle of the corrugated sheets is 30° or 45°, and the directions of two adjacent corrugated sheets are opposite. When filling in the tower, the upper and lower trays of packing are stacked by 90° in a staggered manner.
Wire Gauze Structured Packing has the advantages of high efficiency, pressure reduction and large flux. The products are BX and CY types, which are often used in vacuum distillation, atmospheric distillation and absorption processes for difficult-to-separate and heat-sensitive substances.

Technical Parameter:

Specification of Wire Gauze Structured Packing
Material:SS304, 304L, 410, 316, 316Letc.
Model Bulk Density
(kg/m3)
Specific Surface
(m2/m3)
Free Volume
(%)
Obl. (Angle) P
(Pa/plate)
Theo.Plate (piece/m) HETP
(mm)
F factor m/s (kg/m3)0.5
250BX 125 250 95 30° 100~400 1~1.2 100 2.5~3.5
500BX 250 500 90 30° 400 2~2.5 200 2.0~2.4
700CY 350 700 85 45° 600~700 3.5~4 333-400 1.5~2.0

Application
Absorption,scrubbing and stripping tower in chemical, fertilizer, oil refining, petrochemical, natural gas and other industries etc.

Package:
Wooden case.
