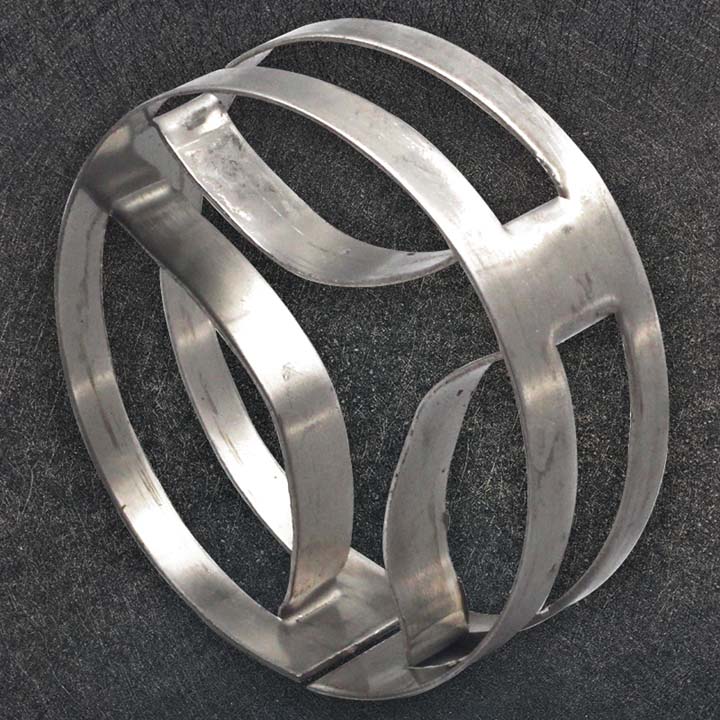

Metal Super Mini Ring

Product：Metal Super Mini Ring
Brand: OIM
Origin of city: Pingxiang city, China
Shelf time: 3-5 years
Payment of terms: TT, L/C, Western Union etc
Delivery of terms: By sea, by air, railways, land etc
Shipment terms: FCA, FOB, CFR, DAP etc
Delivery time: 3-7 days for common product;

Over 10 days for customized product.

Inquiry Now

Description:

Metal Super Mini Ring is also called metal flat ring.Which has improved the packing of the hydrodynamics and mass transfer. Its performance is better than pall ring, as the axial mixing is small, the mass transfer effects may be increased by 20% or more. This kind of metal random packing can applied to gas-liquid mass transfer process.

Technical Parameter:

Specification of Super Mini Ring
Material:SS304, 304L, 410, 316, 316L,Carbon Steel etc.
Dia (MM)	Bulk Density (kg/m³)	Surface Area (m²/m³)	Free Volume (%)	Bulk number (pcs/m³⁾	Packing Factor (m^-1)
16	460	348	92.3	37800	335
25	485	228	93.6	155000	280
38	437	150	95	48000	175
50	346	120	96.5	21500	156
75	264	70	98.5	5800	90.2

Application：
Suitable for various absorption, desorption, extraction application,high pressure towers.

Package：
Super sack and Wooden case.
