Description:

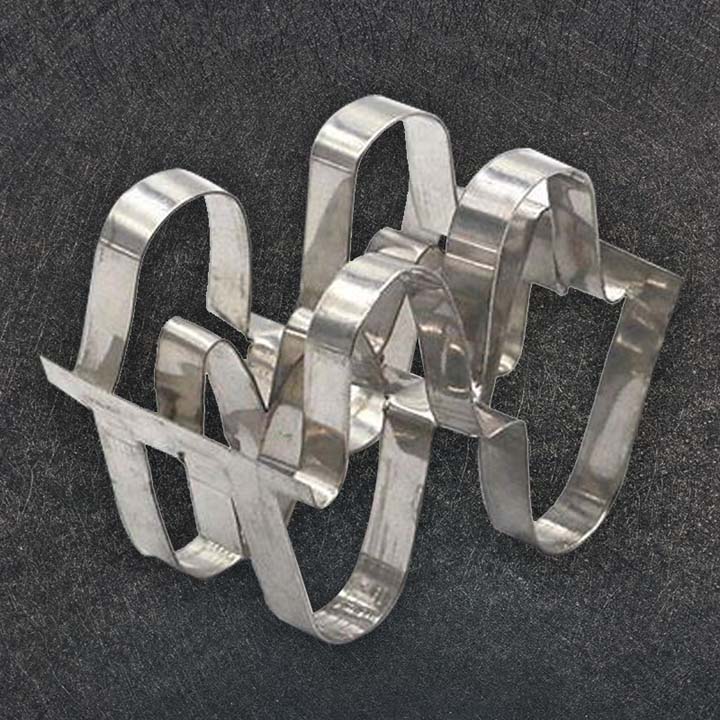

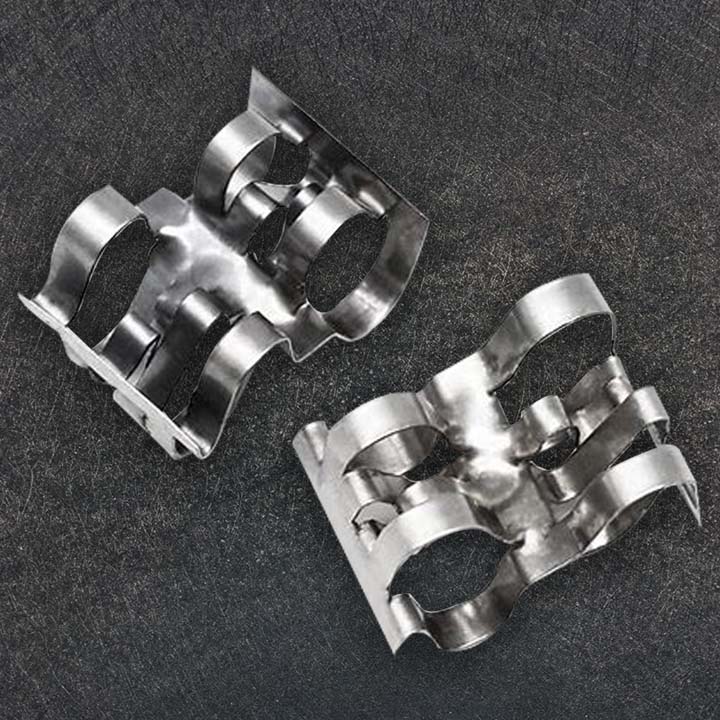

Metal Super Raschig Ring, offers an optimal solution to industry's demands for a modern heavy-duty packing. It avoids the droplet formation which is such a frequent interference accompanying large gas loads. It has a more than 30% greater load capacity, an almost 70% lower pressure drop and a mass transfer efficiency exceeding that of conventional metal packing by over 10%. It has features such as thin wall, heat resistant, high free volume, high capacity, low resistance, high separation efficiency and so on. It is a substantially lower pressure drop than other high-performance packing. It is also suitable for liquids contaminated with solids
Technical Parameter:
|
Specification of Super Raschig Ring |
|
Material:SS304, 304L, 410, 316, 316L,Carbon Steel etc. |
|
Dia (INCH) |
Bulk Density
(kg/m3) |
Surface Area
(m2/m3) |
Free Volume
(%) |
Bulk number (pcs/m3) |
Packing Factor
(m-1) |
|
0.3 |
230 |
315 |
97.1 |
180000 |
343.9 |
|
0.5 |
275 |
250 |
96.5 |
145000 |
278 |
|
0.6 |
310 |
215 |
96.1 |
145000 |
393.2 |
|
0.7 |
240 |
180 |
97 |
45500 |
242.2 |
|
1.0 |
220 |
150 |
97.2 |
32000 |
163.3 |
|
1.5 |
170 |
120 |
97.8 |
13100 |
128 |
|
2.0 |
165 |
100 |
97.9 |
9500 |
106.5 |
|
3.0 |
150 |
80 |
98.1 |
4300 |
84.7 |
|
3.5 |
150 |
67 |
98.1 |
3600 |
71.0 |
Application：
Suitable for various absorption, desorption, extraction application,.thermal separation processes.
Package：
Super sack and Wooden case.
