Plastic Tower Packing

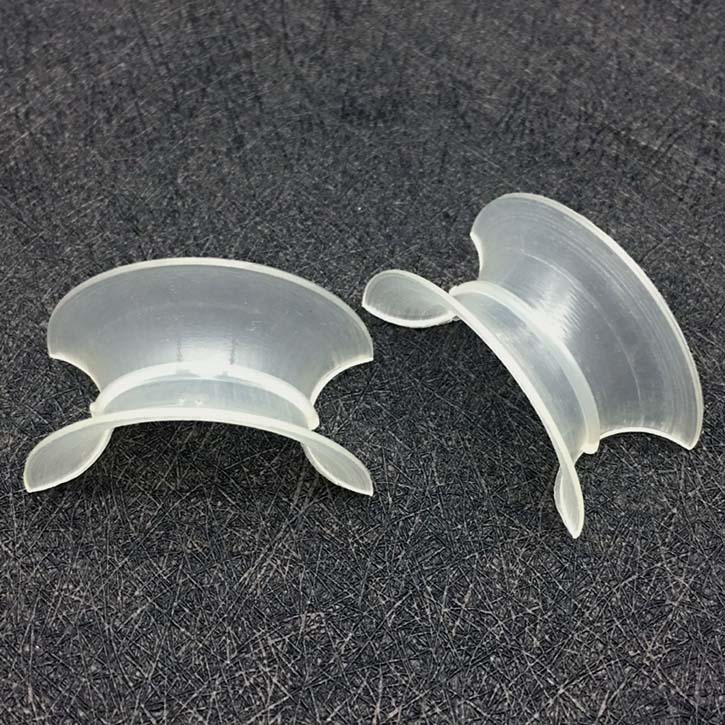

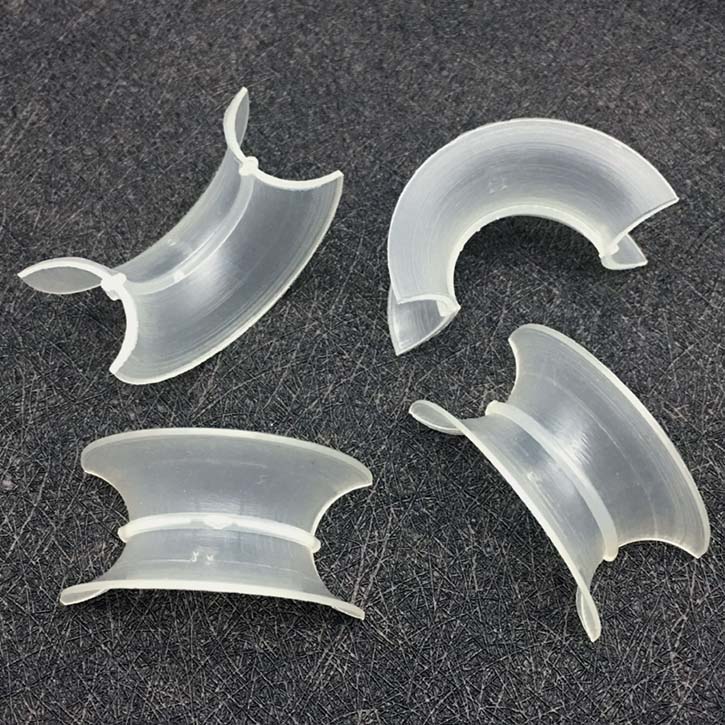

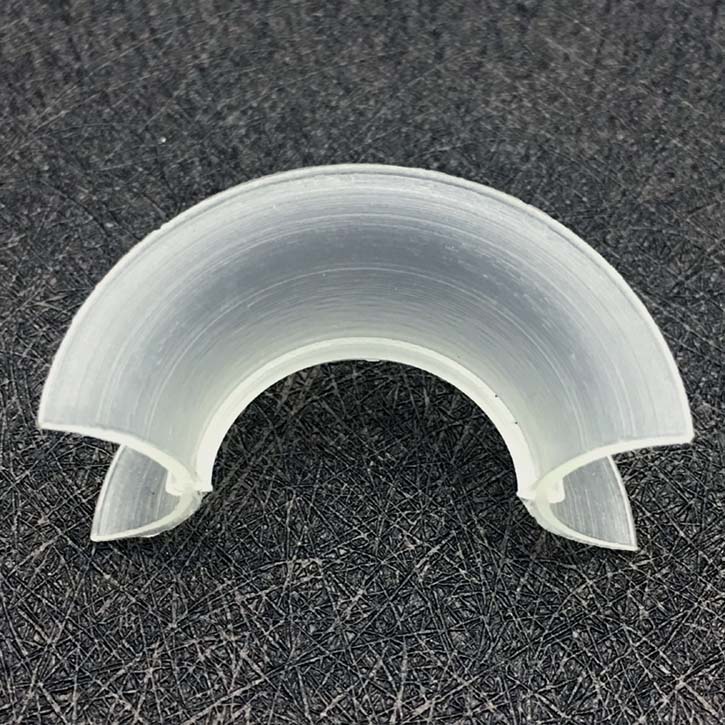

Plastic Intalox Saddle

  • Product:Plastic Intalox Saddle
  • Brand: OIM
  • Origin of city: Pingxiang city, China
  • Shelf time: 3-5 years
  • Payment of terms: TT, L/C, Western Union etc
  • Delivery of terms: By sea, by air, railways, land etc
  • Shipment terms: FCA, FOB, CFR, DAP etc
  • Delivery time: 3-7 days for common product;
  •                        Over 10 days for customized product.

  • Inquiry Now

Description:

Plastic intalox saddle has a large porosity, and there are mostly arc-shaped liquid channels in the bed, which reduces the resistance of gas passing through the bed and also reduces the radial diffusion coefficient when the liquid flows downward. With high density and excellent acid and heat resistance, and can resist corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid

Technical Parameter:
Specification of Plastic Intalox Saddle
Material:PP,RPP,PE,PVC,CPVC,PVDF,etc.
Dia
 (mm)
D*T
(mm)
Surface Area
(m2/m3)
Free Volume
(%)
Bulk number (pcs/m3) Bulk Density
(kg/m3)
F Factor
(m-1)
25 25*12.5*1.2 288 84.7 97680 107 473
38 38*19*1.2 265 95 25200 52 405
50 50*25*1.5 250 96 9400 63 332
76 76*38*2.6 200 97 3700 46 289

Application
drying towers, absorption towers, washing towers, regeneration towers, etc. in the chemical, metallurgical, and gas oxygen production industries.


Package:
Super sack & Wooden case.
