Plastic Tower Packing

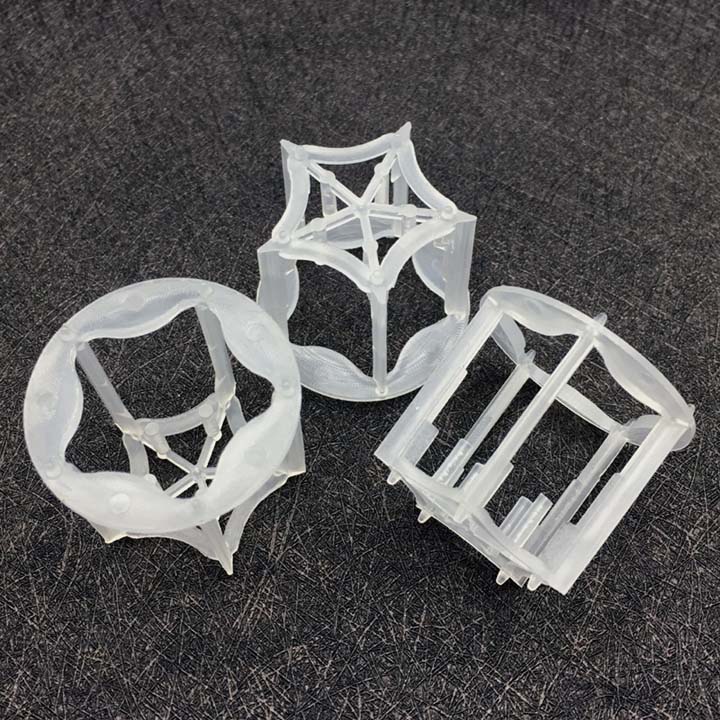

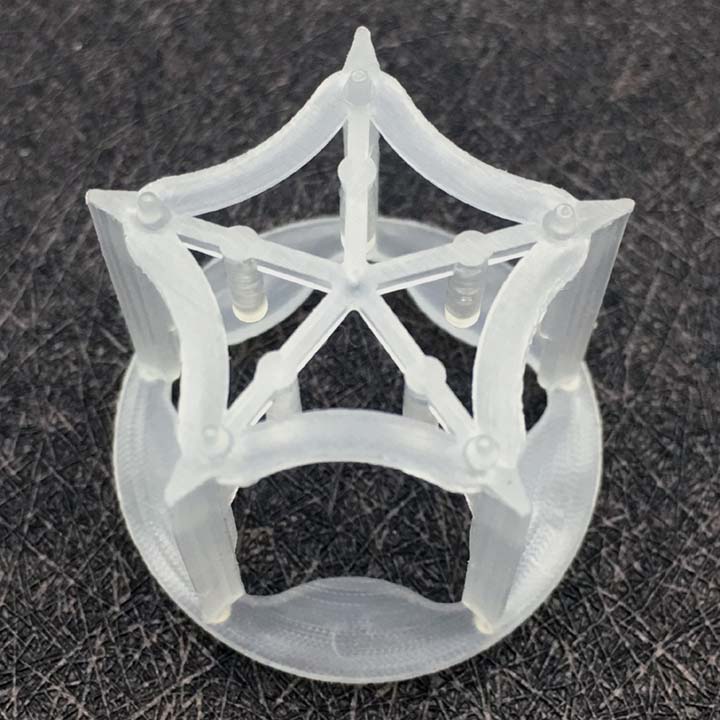

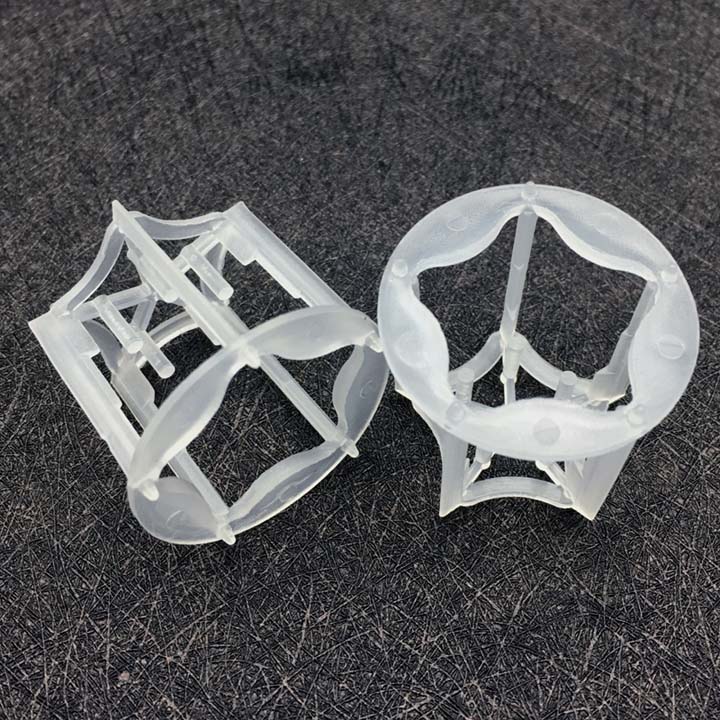

Plastic Pentagon Ring

  • Product:Plastic Pentagon Ring
  • Brand: OIM
  • Origin of city: Pingxiang city, China
  • Shelf time: 3-5 years
  • Payment of terms: TT, L/C, Western Union etc
  • Delivery of terms: By sea, by air, railways, land etc
  • Shipment terms: FCA, FOB, CFR, DAP etc
  • Delivery time: 3-7 days for common product;
  •                        Over 10 days for customized product.

  • Inquiry Now

Description:

Plastic pentagon packing is an excellent packing.Based on this product's structure analysis, funneled hollow out design speeds up liquid's velocity so as to improve Gas & liquid separation efficiency. Ring wall's large area opening hole overcomes big area blocking. Five pieces of horizontal bar which bend toward the centers forms more bigger surface for gas & liquid's contacting. More obviously feature is five pieces of down warded rods evenly distribution. This distribution will promote liquid drop to form big droplet. Finally, it is recognized high efficiency random packing used in separation.

Technical Parameter:
Specification of Plastic Pentagon Ring
Material:PP,PVDF,etc.
Dia
 (mm)
Surface Area
(m2/m3)
Free Volume
(%)
Bulk number
(pcs/m3)
Bulk Density
(kg/m3)
38*12*1.2 246 95 46000 112
50*17*1.5 218 97 21500 107
76*26*2.5 198 96 6500 92

Application
Packing towers, petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection and etc.

Package:
Super sack & Wooden case.
