Description:

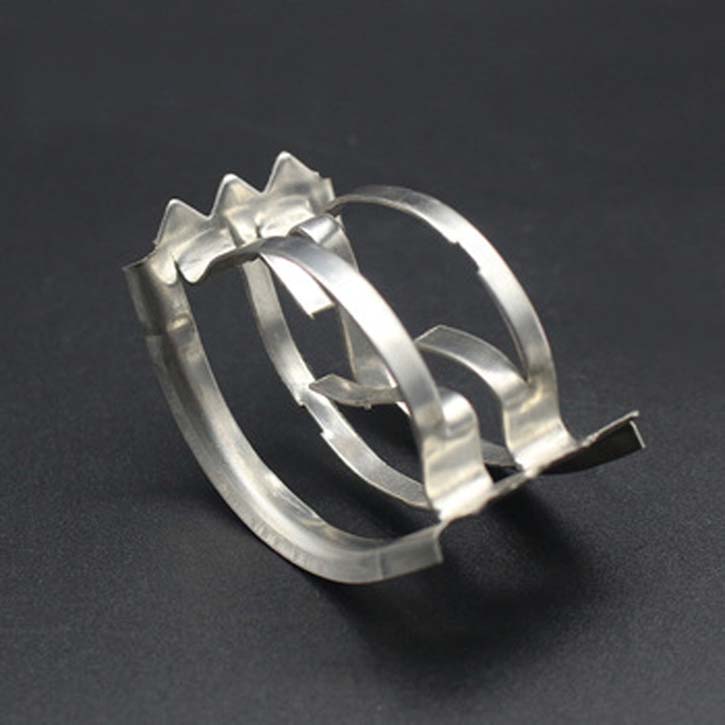

Metal Super Saddle, is one improved ring based on Metal Intalox Ring. The Intalox saddle’s ends are changed wavy or jagged profile. The adjustment is not only increasing packing contacting gap, but also improve gas and liquid movement and distribution in packed layer. It is high performance random packing successfully used in mass transfer towers both small and large diameter. It is frequently used in deep vacuum towers where low pressure drop is crucial and also high pressure towers where capacity significantly exceeds conventional trays.
Technical Parameter:
|
Specification of Metal Super Intalox Saddle Ring |
|
Material:SS304, 304L, 410, 316, 316L,Carbon Steel etc. |
|
Dia (mm) |
D*H*T
(mm) |
Surface Area
(m2/m3) |
Free Volume
(%) |
Bulk number (pcs/m3) |
Bulk Density
(kg/m3) |
Packing Factor
(m-1) |
|
15 |
15*10*0.3 |
305 |
96.5 |
347000 |
282 |
167 |
|
25 |
25*12*0.3 |
241 |
96.8 |
135000 |
222 |
135 |
|
40 |
40*18*0.3 |
161 |
97.1 |
50200 |
147 |
79 |
|
50 |
50*29*0.4 |
104 |
98.1 |
15000 |
133 |
59 |
|
60 |
60*60*0.4 |
85 |
98.2 |
8400 |
109 |
50 |
|
70 |
70*35*0.5 |
62 |
98.6 |
4600 |
114 |
39 |
Application：
Used in rectification, absorption and other reactions. It can be used in both vacuum towers and high-pressure towers. It can also be applied to mass transfer towers with different diameters.
Package：
Super sack and Wooden case.
