Ceramic Tower Packing

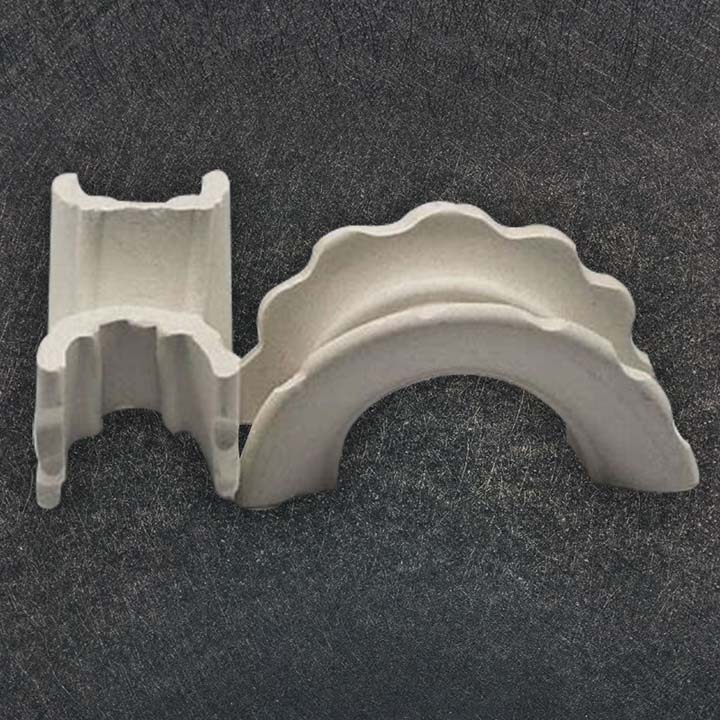

Ceramic Super Intalox Saddle

Product：Ceramic Super Intalox Saddle
Brand: OIM
Origin of city: Pingxiang city, China
Shelf time: 3-5 years
Payment of terms: TT, L/C, Western Union etc
Delivery of terms: By sea, by air, railways, land etc
Shipment terms: FCA, FOB, CFR, DAP etc
Delivery time: 3-7 days for common product;

Over 10 days for customized product.

Inquiry Now

Description:

Ceramic Super Saddle, is one improved ring based on Ceramic Intalox Ring. It has the advantages of large porosity, low pressure drop and mass transfer unit height, high flooding point, sufficient vapor-liquid contact, small specific gravity, high mass transfer efficiency, pressure drop, large flux, high efficiency, large load elasticity, and pollution resistance Good features. Widely used in plastic saddle ring, used in dewaxing oil refining extraction, demethanization, phthalic anhydride refining, etc.

Technical Parameter:

Chemical Properties
Al₂O₃	17%~19%	MgO	<0.5%
SiO₂	>70%	K2O+Na2O	<3.5%
Al₂O₃+SiO₂	>92%	Fe2O3	<1%
CaO	<1%	Other	<1%
Physical properties
Water Absorption		<0.5%
Specific gravity		2.3~2.4 g/cm³
Acid resistance		>99.6%
Alkali resistance		>85%
Moh’s hardness		>6.5 scale
Operating temperature		1200 ℃ max

Specification
Dia (mm)	DHT (mm)	Surface Area (m²/m³)	Free Volume (%)	Bulk Density (kg/m³)	Packing Factor (m^-1)
25	25203	160	78	700	570
38	38304	102	80	650	430
50	50426	88	80	630	277
76	76539	58	82	600	206

Application：

the drying tower, absorption tower, cooling tower and washing towers in chemical, metallurgy, coal gas, industrial oxygen production industries.

Package：Super sack & Wooden case.
