Ceramic Tower Packing

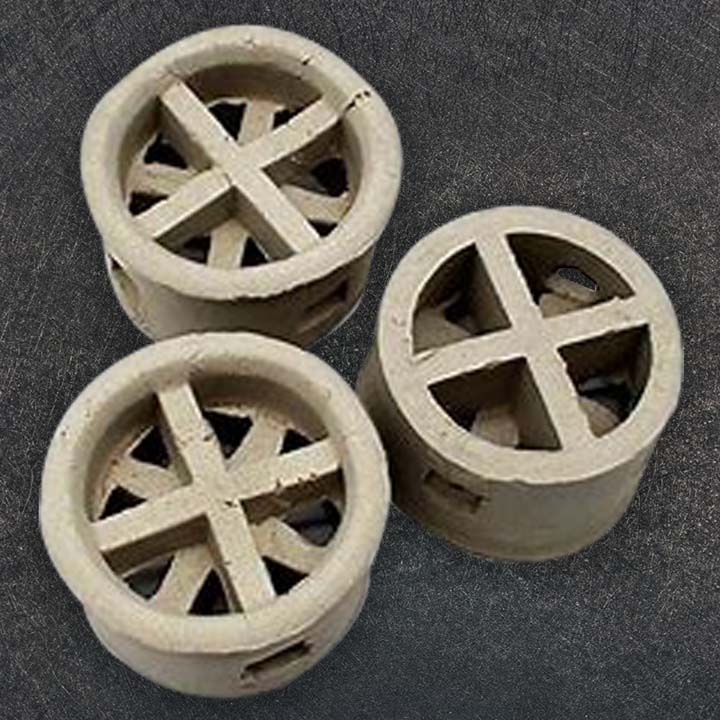

Ceramic Cascade Mini Ring

Product：Ceramic Cascade Mini Ring
Brand: OIM
Origin of city: Pingxiang city, China
Shelf time: 3-5 years
Payment of terms: TT, L/C, Western Union etc
Delivery of terms: By sea, by air, railways, land etc
Shipment terms: FCA, FOB, CFR, DAP etc
Delivery time: 3-7 days for common product;

Over 10 days for customized product.

Inquiry Now

Description:

The side ends of ceramic cascade mini ring packing increase the flanging, which can not only increase the mechanical strength of the packing ring, but also, because the symmetry of the packing structure is destroyed, the orientation probability of the packing is increased.With excellent acid resistance and heat resistance. They can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions.

Technical Parameter:

Chemical Properties
Al₂O₃	17%~19%	MgO	<0.5%
SiO₂	>70%	K2O+Na2O	<3.5%
Al₂O₃+SiO₂	>92%	Fe2O3	<1%
CaO	<1%	Other	<1%
Physical properties
Water Absorption		<0.5%
Specific gravity		2.3~2.4 g/cm³
Acid resistance		>99.6%
Alkali resistance		>85%
Moh’s hardness		>6.5 scale
Operating temperature		1200 ℃ max

Specification
Dia (mm)	DHT (mm)	Surface Area (m²/m³)	Free Volume (%)	Bulk number (pcs/m³⁾	Bulk Density (kg/m³)	Packing Factor (m^-1)
25	25153	210	73	72000	650	540
38	38234	153	74	21600	630	378
50	50305	102	76	9100	580	232
76	7646*8	75	78	2500	530	158

Application：

the drying tower, absorption tower, cooling tower and washing towers in chemical, metallurgy, coal gas, industrial oxygen production industries.

Package：
Super sack & Wooden case.
