Ceramic Tower Packing

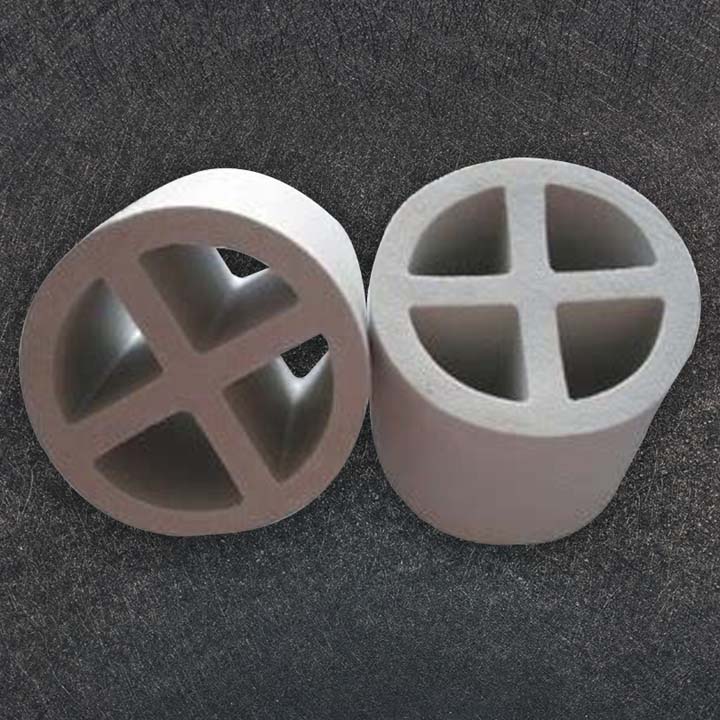

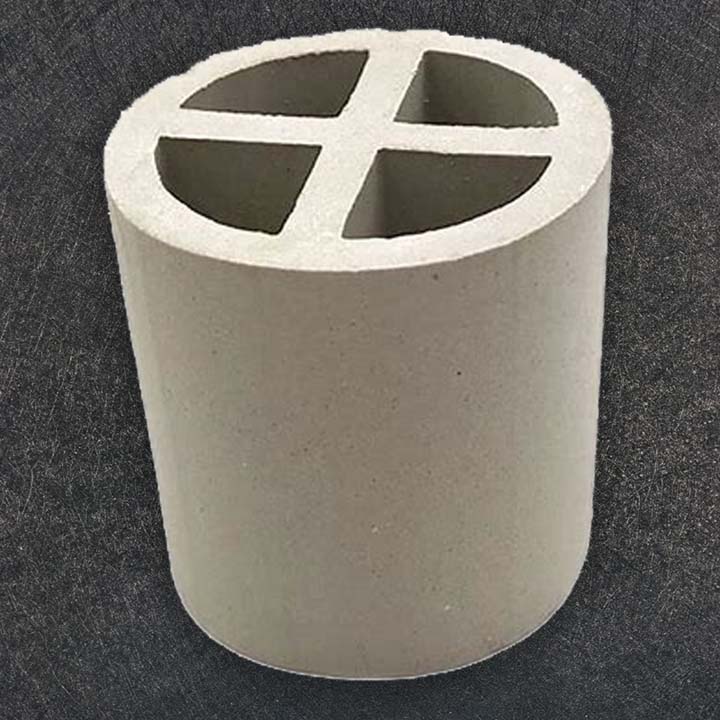

Ceramic Cross Partition Ring

  • Brand: OIM
  • Origin of city: Pingxiang city, China
  • Shelf time: 3-5 years
  • Payment of terms: TT, L/C, Western Union etc
  • Delivery of terms: By sea, by air, railways, land etc
  • Shipment terms: FCA, FOB, CFR, DAP etc
  • Delivery time: 3-7 days for common product;
  •                        Over 10 days for customized product.

  • Inquiry Now

Description:

The ceramic cross Partition ring is developed based on the idea of increasing the specific surface of the filler to enhance the mass transfer efficiency. The cross baffle ring is an improvement on the Raschig ring. The method of adding a baffle in a similar ring expands the ratio. Surface area, while increasing the compressive strength of the porcelain filler, it is usually used as a layered support for small fillers, with relatively low pressure drop, and less channeling and wall flow. Its structure is to add a cross partition in the Raschig ring. Generally speaking, due to its large size, this kind of packing is only suitable for neat stacking, and is generally only used as a support distribution layer at the bottom of the tower for random packing.

Technical Parameter:
Chemical Properties
Al2O3 17%~19% MgO <0.5%
SiO2 >70% K2O+Na2O <3.5%
Al2O3+SiO2 >92% Fe2O3 <1%
CaO <1% Other <1%
Physical properties
Water Absorption <0.5%
Specific gravity 2.3~2.4 g/cm3
Acid resistance >99.6%
Alkali resistance >85%
Moh’s hardness >6.5 scale
Operating temperature 1200 ℃ max

Specification
Dia (mm) D*H*T
(mm)
Surface Area
(m2/m3)
Free Volume
(%)
Bulk number (pcs/m3) Bulk Density
(kg/m3)
Packing Factor(m-1)
50 50*40*50*5 145 50 6400 600 565
80 80*64*80*8 120 56 1950 820 356
100 100*80*100*10 110 53 1000 850 252
120 120*96*120*12 75 55 370 860 146
150 150*120*150*15 60 58 295 980 101

Application
the drying tower, absorption tower, cooling tower and washing towers in chemical, metallurgy, coal gas, industrial oxygen production industries.

Package:Super sack & Wooden case.
