Ceramic Tower Packing

Ceramic Pall Ring

  • Brand: OIM
  • Origin of city: Pingxiang city, China
  • Shelf time: 3-5 years
  • Payment of terms: TT, L/C, Western Union etc
  • Delivery of terms: By sea, by air, railways, land etc
  • Shipment terms: FCA, FOB, CFR, DAP etc
  • Delivery time: 3-7 days for common product;
  •                        Over 10 days for customized product.

  • Inquiry Now

Description:

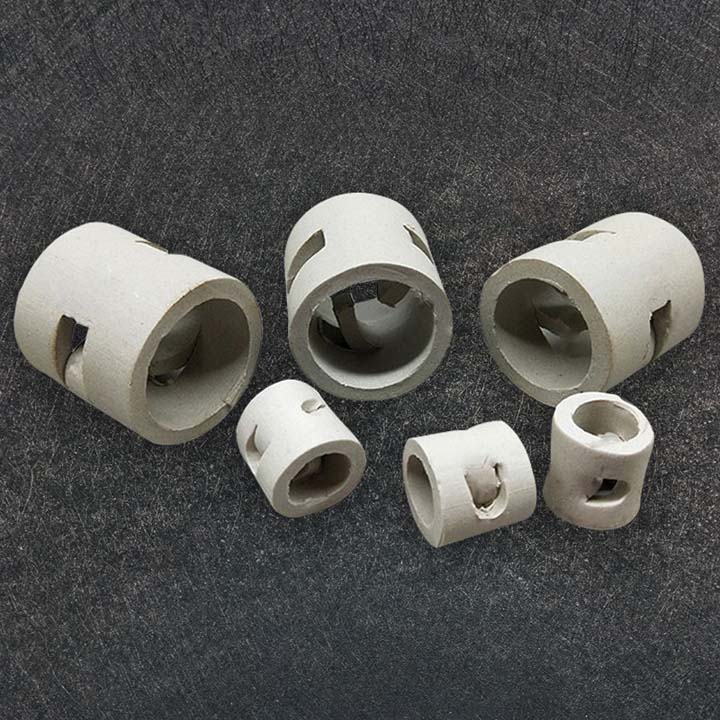

Ceramic Pall ring is the advanced products of ceramic Raschig ring. Compared with ceramic Raschig ring, there are two layers of window on the cylinder wall. And each layer has five ligules bending inward. It has single layer pall ring and double layer pall ring.

Technical Parameter:
Chemical Properties
Al2O3 17%~19% MgO <0.5%
SiO2 >70% K2O+Na2O <3.5%
Al2O3+SiO2 >92% Fe2O3 <1%
CaO <1% Other <1%
Physical properties
Water Absorption <0.5%
Specific gravity 2.3~2.4 g/cm3
Acid resistance >99.6%
Alkali resistance >85%
Moh’s hardness >6.5 scale
Operating temperature 1200 ℃ max

Specification
Dia (mm) D*H*T
(mm)
Surface Area
(m2/m3)
Free Volume
(%)
Bulk number (pcs/m3) Bulk Density
(kg/m3)
Packing Factor
(m-1)
38 38*38*4 150 75 13400 570 356
50 50*50*5 120 78 6800 550 252
80 80*80*8 75 80 1950 520 146

Application
the drying tower, absorption tower, cooling tower and washing towers in chemical, metallurgy, coal gas, industrial oxygen production industries.

Package:
Super sack & Wooden case.
