Ceramic Tower Packing

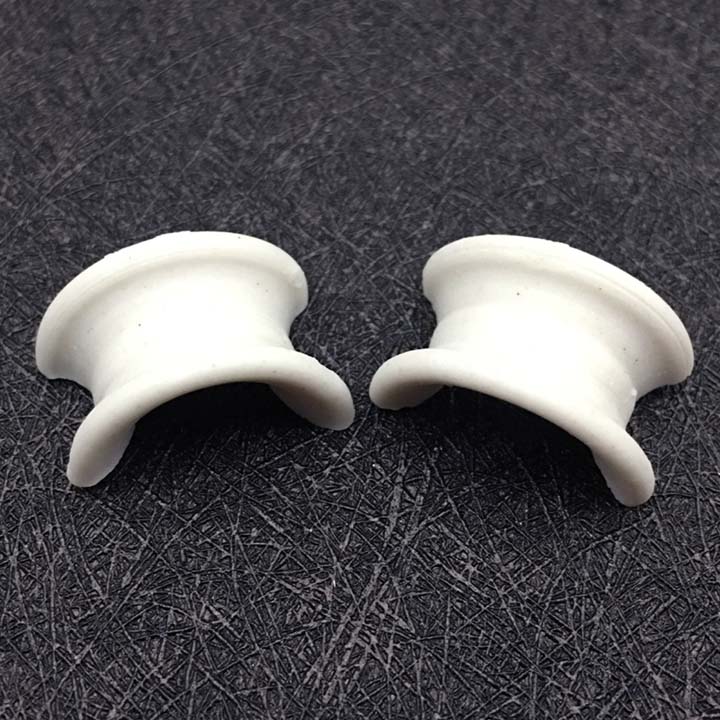

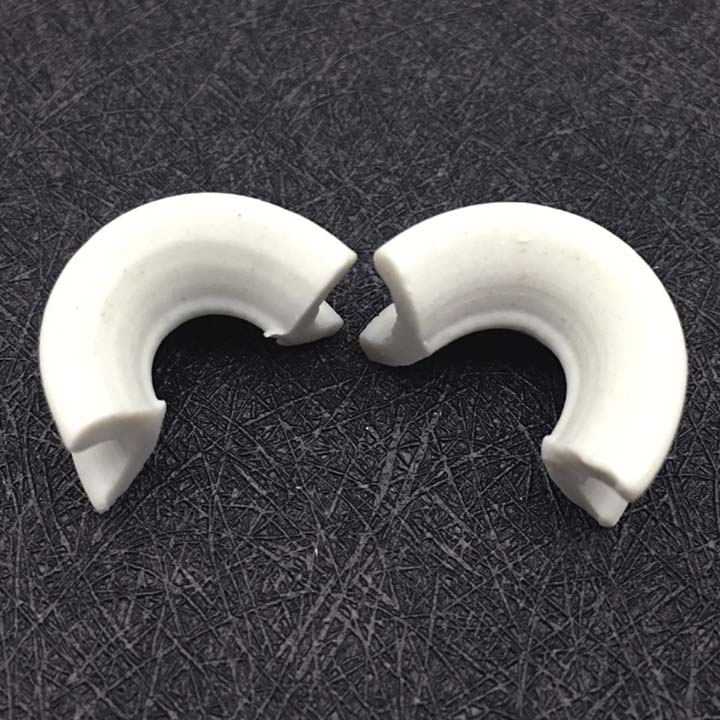

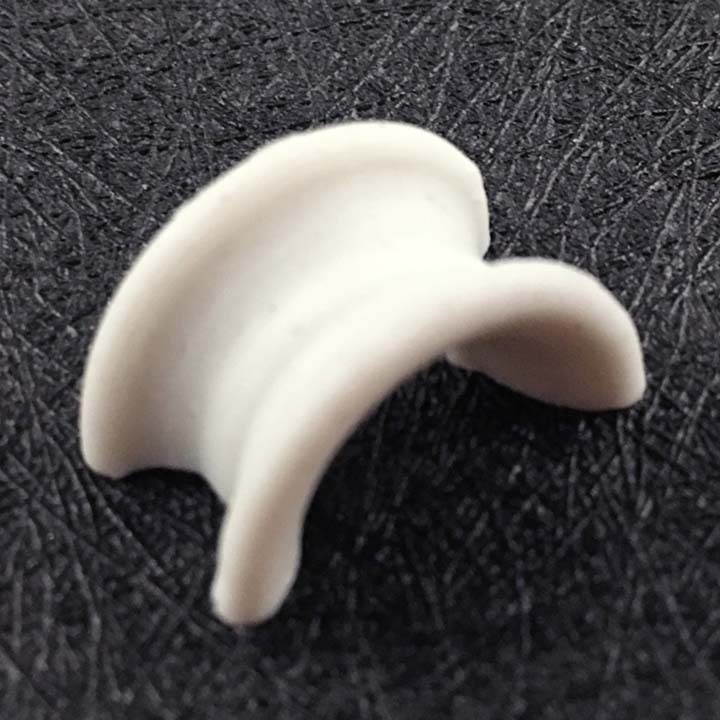

Ceramic Intalox Saddle

  • Brand: OIM
  • Origin of city: Pingxiang city, China
  • Shelf time: 3-5 years
  • Payment of terms: TT, L/C, Western Union etc
  • Delivery of terms: By sea, by air, railways, land etc
  • Shipment terms: FCA, FOB, CFR, DAP etc
  • Delivery time: 3-7 days for common product;
  •                        Over 10 days for customized product.

  • Inquiry Now

Description:

The ceramic saddle ring packing bed has a larger porosity. The shape of the ceramic intalox saddle ring is between the ring shape and the saddle shape, so it has the advantages of both. This structure is conducive to liquid distribution and increased gas channels. Ceramic saddle ring Because of its high density and excellent acid and heat resistance, and can resist corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid.

Technical Parameter:
Chemical Properties
Al2O3 17%~19% MgO <0.5%
SiO2 >70% K2O+Na2O <3.5%
Al2O3+SiO2 >92% Fe2O3 <1%
CaO <1% Other <1%
Physical properties
Water Absorption <0.5%
Specific gravity 2.3~2.4 g/cm3
Acid resistance >99.6%
Alkali resistance >85%
Moh’s hardness >6.5 scale
Operating temperature 1200 ℃ max

Dia (mm) D*H*T
(mm)
Surface Area
(m2/m3)
Bulk Density
(kg/m3)
Free Volume
(%)
Packing Factor
(m-1)
12 12*10*2 623 850 71.7 200
19 19*20*3 334 750 73 130
25 25*20*3 253 700 73 85
38 38*30*4 164 650 75 50
50 50*42*6 115 630 77.4 37
76 76*53*9 92 600 75.5 24

Application
the drying tower, absorption tower, cooling tower and washing towers in chemical, metallurgy, coal gas, industrial oxygen production industries.

Package:Super sack & Wooden case.
