Ceramic Tower Packing

Ceramic Structured Packing

  • Brand: OIM
  • Origin of city: Pingxiang city, China
  • Shelf time: 3-5 years
  • Payment of terms: TT, L/C, Western Union etc
  • Delivery of terms: By sea, by air, railways, land etc
  • Shipment terms: FCA, FOB, CFR, DAP etc
  • Delivery time: 3-7 days for common product;
  •                        Over 10 days for customized product.

  • Inquiry Now

Description:

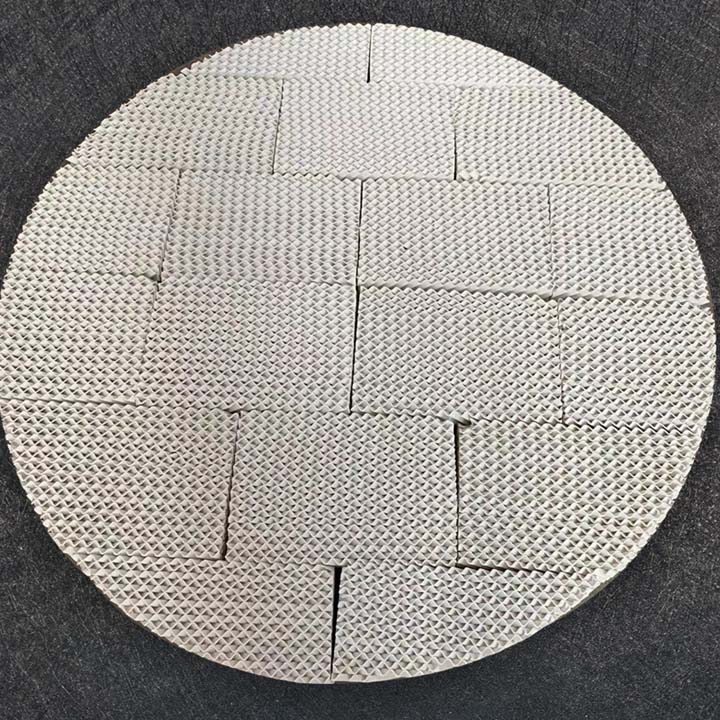

Ceramic structured packing is a cylindrical unit composed of many packing unit bodies with the same geometric shape-corrugated sheets are parallel to each other and superimposed. Due to the unique structure of ceramics, it has good hydrophilic properties. The turbulence of the extremely thin liquid film and the inclined tortuous channels of the air flow can promote the air flow without blocking the air flow so that the ceramic filler can match the metal filler. Its corrosion resistance and high temperature resistance are not comparable to metal fillers. It has large circulation, High separation efficiency, big surface area, low pressure drop, small liquid holding capacity etc advance.

Technical Parameter:
Chemical Properties
Al2O3 ≥23% MgO ≤1.0%
SiO2 >72% Fe2O3 ≤0.5%
CaO ≤1% Other 2%
Physical properties
Water Absorption ≤0.5%
Specific gravity 2.5 g/cm3
Acid resistance ≥99.5%
Loss in bum ≤5%
Moh’s hardness ≥7 scale
Operating temperature 800 ℃ max
Cruth Strength ≥130Mpa

Spec. Specific surface (m2/m3) Bulk density     (kg/m3) Void ratio
(%)
Obl. angle Pressure drop (mmHg/m) Theo. Plate
(m-1)
Hydraulic diameter
(mm)
Liquid load (m3/m2h) Max. Factorm/s (Kg/m3)-1
125Y 125 320 90 45° 1.8 1.8 28 0.2-100 3
160Y 160 370 85 45° 2 2 15 0.2-100 2.8
250Y 250 420 80 45° 2 2.5 12 0.2-100 2.6
350Y 350 470 78 45° 2.5 2.8 10 0.2-100 2.5
400Y 400 500 75 45° 3 3 8 0.2-100 2
450Y 450 520 72 45° 4 4 7 0.2-100 1.8
550Y 550 620 74 45° 5.5 5-6 6 0.18-100 1.4
700Y 700 650 72 45° 6 7 5 0.15-100 1.3
100X 100 280 92 30° 1.5 1 30 0.2-100 3.5
125X 125 300 90 30° 1.8 1.5 28 0.2-100 3.2
160X 160 350 85 30° 2 1.8 15 0.2-100 3
250X 250 380 80 30° 2.5 2.3 12 0.2-100 2.8
350X 350 450 78 30° 3 2.5 10 0.2-100 2.6
400X 400 480 75 30° 4 2.8 8 0.2-100 2.2
450X 450 500 72 30° 4.5 3-4 7 0.2-100 2
470X 470 440 75 30° 5 5 7 0.2-100 1.8
550X 550 620 74 30° 5.5 5-6 6 0.18-100 1.4
700X 700 650 72 30° 6 7 5 0.15-100 1.3

Application
● Rectifying organic halide.
● Rectifying and absorbing some corrosive mixtures, which are definitely regulated in pressure drop and theoretic plate number.
● Applied in some towers that contain a large quantity of natural media used to absorb nitric acid and concentrated sulfuric acid, as well as for purifying the air in chemical plants.
● Operating in vacuum conditions at a bottom absolute pressure of 100pa.
● Used in heat ex changer and demisting, or as a catalyst carrier.

Package:
Carton box & Wooden case.
