Plastic Tower Packing

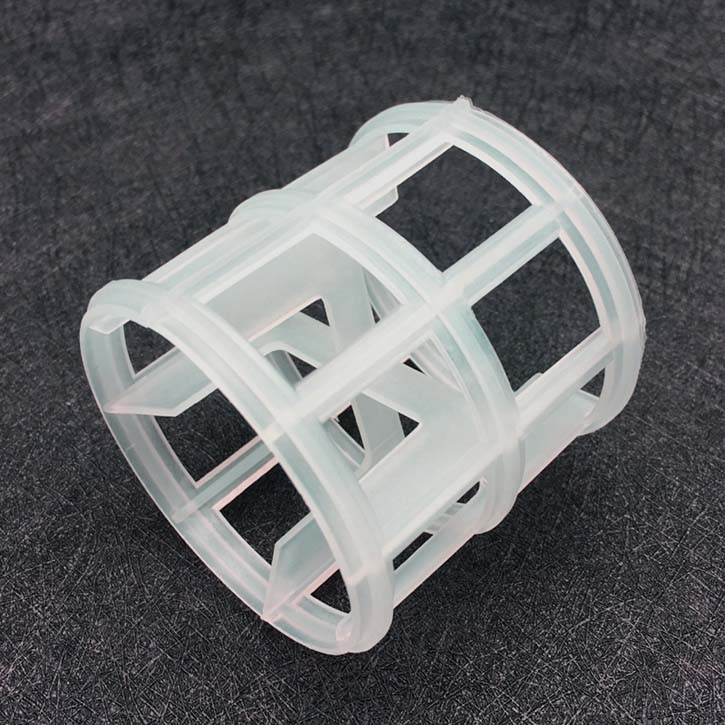

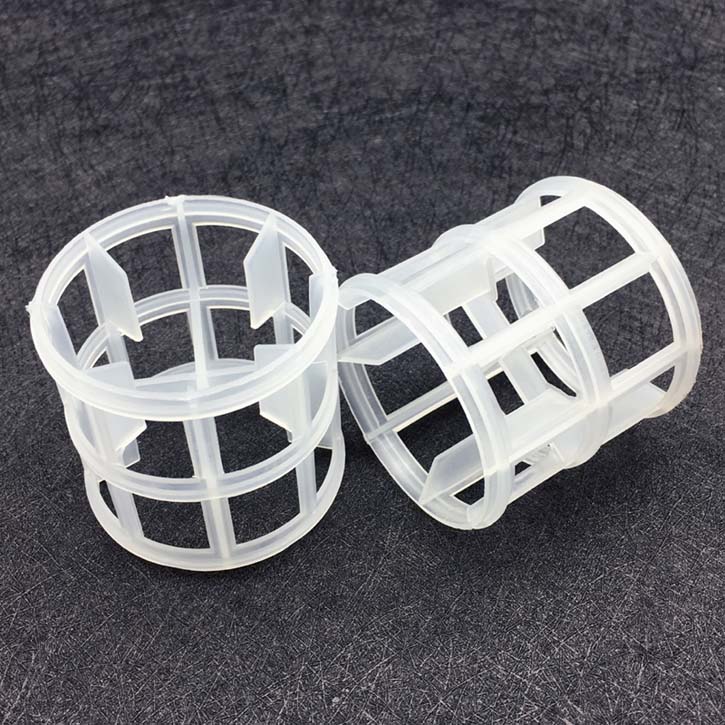

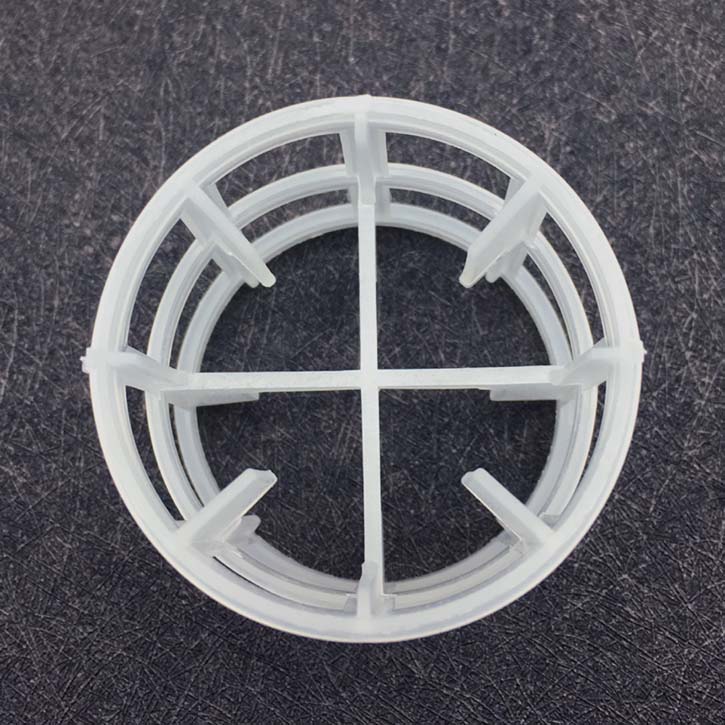

Plastic Hi-Flow Ring

  • Product:Plastic Hi-Flow Ring
  • Brand: OIM
  • Origin of city: Pingxiang city, China
  • Shelf time: 3-5 years
  • Payment of terms: TT, L/C, Western Union etc
  • Delivery of terms: By sea, by air, railways, land etc
  • Shipment terms: FCA, FOB, CFR, DAP etc
  • Delivery time: 3-7 days for common product;
  •                        Over 10 days for customized product.

  • Inquiry Now

Description:

The open structure and resistance to nesting provide maximum protection against fouling and plugging. Hiflow ring is very similar with Norpak by Norddeutsche seekabelwerk, but its vertical bar is interlacely distribute. Furthermore, 6 strengthen muscles in the middle of circle enhance its rigidity and intensity. Additional properties of plastic hiflow ring packing are high capacity gas and liquid flow rates, extremely low pressure drop, very low wall flow,and low sensitivity to pollution and fouling.

Technical Parameter:
Specification of Plastic Hi-Flow Ring
Material:PP,PVDF,etc.
Size
(mm)
Surface Area
 (m2/m3)
Free Volume
(%)
Bulk number
(pcs/m3)
Bulk Density
(kg/m3)
50*1.5 90 94 6500 49

Application
in Absorbers, Liquied/Liquid Extraction, Degassing, Heat Transfer, Water Treatment,etc.

Package:
Super sack & Wooden case.
