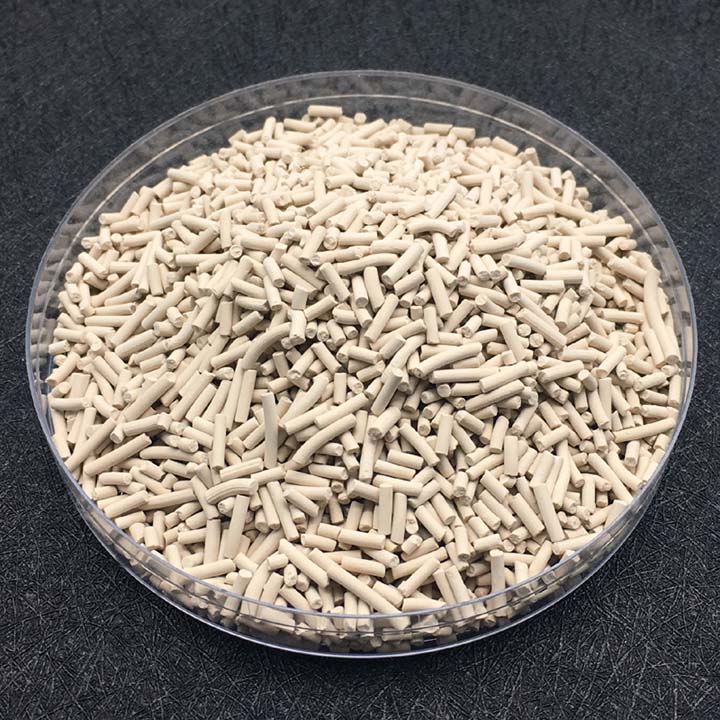

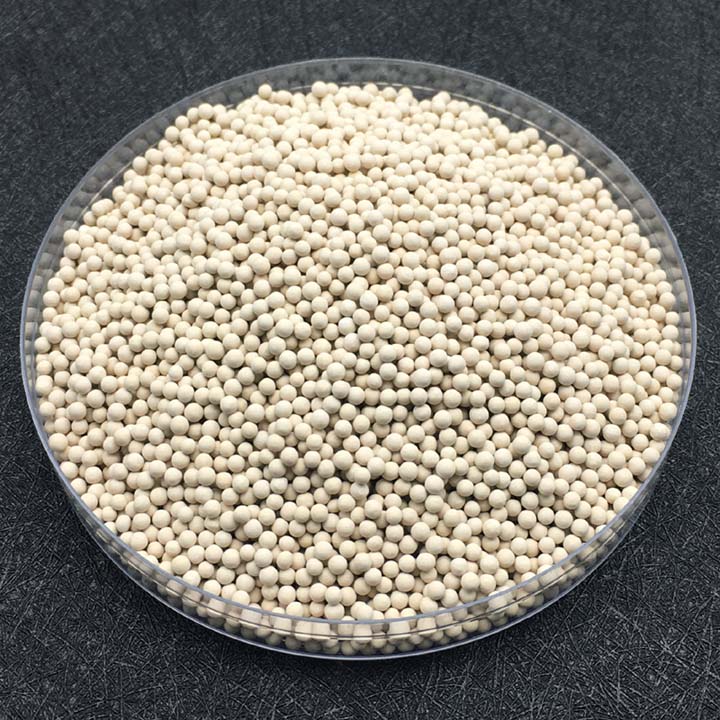

Adsorbents-MS Series

13X Molecular Sieve

  • Brand: OIM
  • Origin of city: Pingxiang city, China
  • Shelf time: 3-5 years
  • Payment of terms: TT, L/C, Western Union etc
  • Delivery of terms: By sea, by air, railways, land etc
  • Shipment terms: FCA, FOB, CFR, DAP etc
  • Delivery time: 3-7 days for common product;
  •                        Over 10 days for customized product.

  • Inquiry Now

Description:

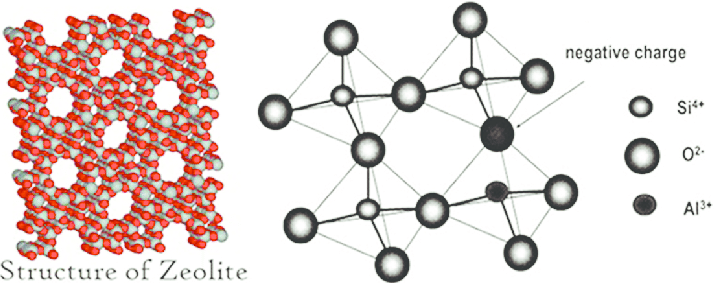

13X type molecular sieve, also called NaX or NaA type molecular sieve,is one type of alumino silicate crystal with average pores measuring of 9angstrom(0.9nm).It has good mass transfer rates. And is commonly used to separate nitrogen from oxygen.

Chemical Molecular Formula:
Na2O·Al2O3·(2.8±0.2) SiO2·(6~7)H2O.   (SiO2:Al2O3≈2.6-3.0).

Technical Parameter:

Properties Unit Bead Cylinder
Diameter mm 1.6-2.5 3.0-5.0 1.6 3.2
mesh/inch 8*12 4*8 1/16” 1/8”
Bulk density g/ml ≥0.64 ≥0.64 ≥0.61  ≥0.61
Crushing strength N/pce ≥30.0 ≥70.0 ≥30.0 ≥50.0
Size ratio up to grade wt% ≥98.0 ≥98.0 ≥96.0 ≥96.0
Static H2O adsorption wt% ≥25 ≥25 ≥25 ≥25
Static CO2 adsorption  wt% ≥17.0 ≥17.0 ≥17.0 ≥17.0
Package Moisture  wt% ≤1.5 ≤1.5 ≤1.5 ≤1.5
Wear ratio wt% ≤0.2 ≤0.2 ≤0.40 ≤0.40


Application:
 Remove CO2 and moisture,gas purification in air separation unit.
 Drying and desulfurization of natural gas, liquefied petroleum gas, and liquid hydrocarbons.
 Deeply drying for general gas
 Bulk industrial oxygen in PSA units.
 Desulfurization (sweetening) of natural gas and other fluids

Package:
800kg super sack
140kg steel drum
25kg Carton box/Paper drum
