Over 10 days for customized product.

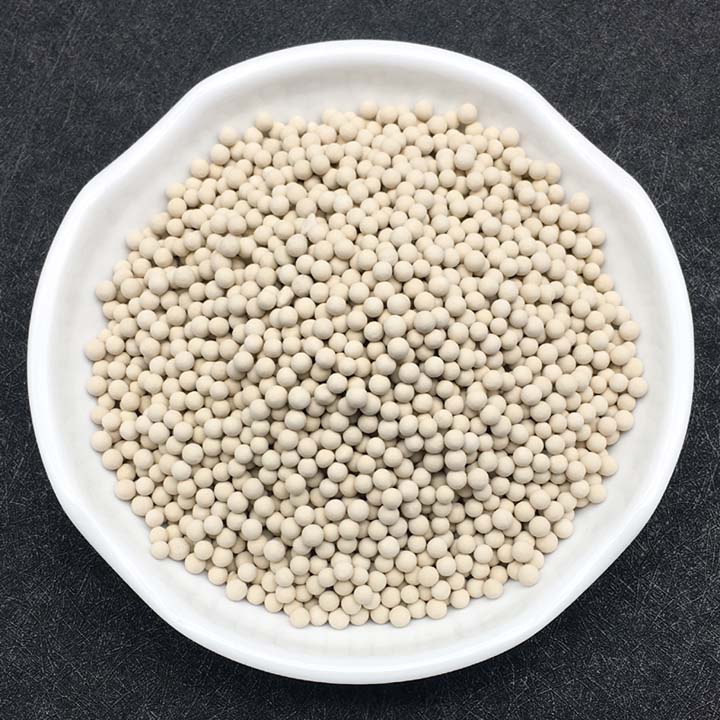

13X APG is special type molecular sieve for the various sizes of cryogenic air separation devise. WIth faster adsorption capacity and avoid freezing tower phenomenon in the air separation process.
Chemical Molecular Formula:
Na2O·Al2O3·2.45SiO2·6.0H2O. (SiO2:Al2O3≈2.6-3.0).

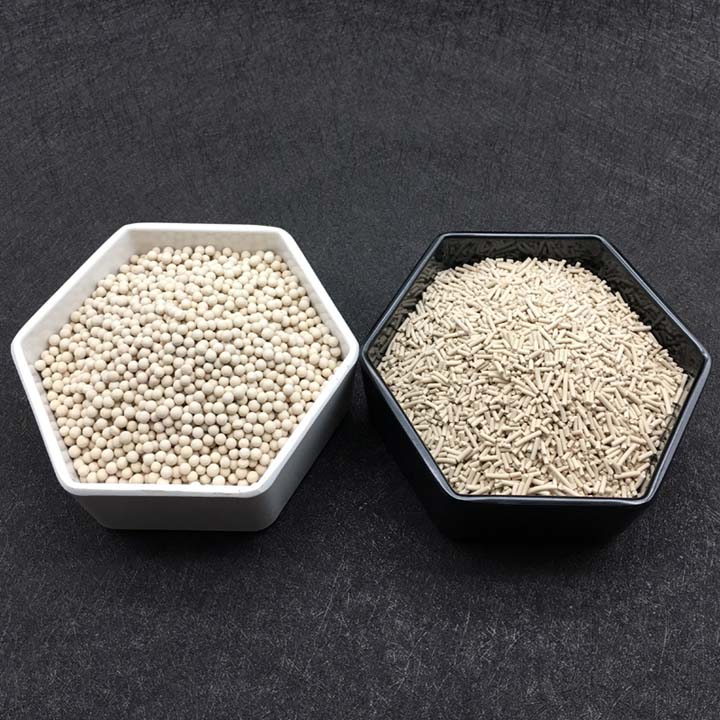

Properties | Unit | Bead | Cylinder | ||
Diameter | mm | 1.6-2.5 | 3.0-5.0 | 1.6 | 3.2 |
mesh/inch | 8*12 | 4*8 | 1/16” | 1/8” | |
Bulk density | g/ml | ≥0.64 | ≥0.64 | ≥0.61 | ≥0.61 |
Crushing strength | N/pce | ≥30.0 | ≥70.0 | ≥25.0 | ≥45.0 |
Size ratio up to grade | wt% | ≥98.0 | ≥98.0 | ≥95.0 | ≥95.0 |
Static H2O adsorption | wt% | ≥27 | ≥27 | ≥27 | ≥27 |
Static CO2 adsorption | wt% | ≥18.0 | ≥18.0 | ≥18.0 | ≥18.0 |
Package Moisture | wt% | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
Wear ratio | wt% | ≤0.2 | ≤0.2 | ≤0.40 | ≤0.40 |
1. Over 11 years’ production experience;
2. High quality control;
3. Professional technical guidance;
4. Fast delivery and competitive price;
